12Vdc 12W Wall mounted Switch Mode Power Supply Adapter

PSA1212-W, AC/DC Switch Mode Power Supply (SMPS), it comes with 12Vdc/12W stabilized output power, it’s wall direct mounted or wall direct plug-in way of electric power input access through different AC power plugs based on different countries’ standard. Meanwhile, it is also equipped with a DC connector at size of usual standard (Outer Diameter*Inner Diameter) 5.5x2.1mm and 5.5x2.5mm, or other size combination standard as required for different device.

PSA1212-W is designed and developed over IC control solution instead of RCC solution or Triode based circuit scheme, which will highly increase the power efficiency, stability, universality and safety, now it’s already up to the fifth level power efficiency (DoE V) and are being improved to up to DoE VI. The PCB module of our SMPS are produced through SMT (Surface Mounting Technology) automatic process that will greatly ensure our higher capacity and the SMPS qualification ratio.

This power supply unit is made base on plastic capsulated design and encapsulated through ultrasonic wave or screw locking, which both make its shell sturdy and durable. Mostly, AC plug it comes with are conform to US, EU, UK, AUS and other standards it may concern and be frequently used in the market.

With wide input voltage range AC100-AC240V and adaptable AC plug, Small-size, Light-weight, Plug and play which make the SMPS flexible for installation project in different industries such as LED Lighting, CCTV Surveillance, Network Systems and other areas it may require. So, it’s widely used in every field and all industries.

For now, Most Close Circuit Television(CCTV) cameras in the market requires Low Voltage DC 12V power supply, which also called AC/DC Adapter/Transformer on DC switching mode, it's different from linear power supply such as AC24V that is also usually applied to security cameras.

> PoE Splitter

Item	12V/12W Wall Mounted Switch Mode Power Supply AC/DC Adapter
Model	PSA1212-W
Input	AC 100-240V, 50-60Hz
Output	DC 12V, 1000mA
Power	Rate 12W, Max. 15W
Circuit Module	IC (Integrated Circuit) solution instead of Triode Scheme, RCC(Ring Choke Converter) or other solutions
DC Plug	5.5x2.1mm (default), 5.5x2.5mm or other OEM size are available
Output Cable	1.2 meter (default), different length of customization are available
Protection	SCP (short-circuit protection); OVP (over-voltage protection); OLP (over-load protection); OCP (over-current protection); OTP (over-temperature protection)
Energy Efficiency	DoE V
Operating Environment	Operating temperature/humidity: -10℃-70℃; 20%-90% RH
Storing Environment	Storing temperature/humidity: -20℃-85℃; 10%-95% RH
Safety Approval	CE EMC/LVD, FCC, RoHS
AC Plug	US, EU, AU, UK and other types of AC plug are all available
Application	CCTV Camera, Wireless AP/Router, Power Charger/Bank, LED Light, etc.

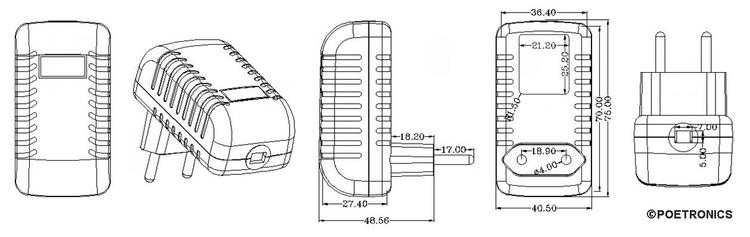

Enclosure	PC+ABS material, size: 75x40.5x30.4mm
Package	White color gift box (implied), 100pcs/carton, carton size: 51.5x24x29.5cm
Warranty	1 year (implied), 2-5 years available based on negotiation
Note	All material for components and parts of this power supply adapters are Brand new, Environment Friendly, Quality Assured.
