Home >> Product >> Power Supply >> 5V Power Supply>> PSA0520-W >> DC5V, 4A, 20W Wall Mounted Power Supply Adapter
Supply Ability: 35200 units/month
Overview
PSA0520-W, AC/DC Switch Mode Power Supply (SMPS), it comes with 5Vdc/20W stabilized output power, it’s wall direct mounted or wall direct plug-in way of electric power input access through different AC power plugs based on different countries’ standard. Meanwhile, it is also equipped with a DC connector at size of usual standard (Outer Diameter*Inner Diameter) 5.5x2.1mm and 5.5x2.5mm or other size combination standard as required for different device.
PSA0520-W is designed and developed over IC control solution instead of RCC solution or Triode based circuit scheme, which will highly increase the power efficiency, stability, universality and safety, now it’s already up to the fifth level power efficiency (DoE V) and are being improved to up to DoE VI. The PCB module of our SMPS are produced through SMT (Surface Mounting Technology) automatic process that will greatly ensure our higher capacity and the SMPS qualification ratio.
This power supply unit PSA0520-W is made base on plastic capsulated design and encapsulated through ultrasonic wave or screw locking, which both make its enclosure sturdy and durable. Mostly, AC plug it comes with are conform to US, EU, UK, AUS and other standards it may concern and be frequently used in the market.
With wide input voltage range AC100-240V and adaptable AC plug, Small-size, Light-weight, Plug and play which make the SMPS flexible for installation project in different industries such as LED Lighting, CCTV Surveillance, Network Systems and other areas it may require. So, it’s widely used in every field and all industries.
5Vdc, 4A, 20W
Switch Power Supply
Product Range
Warranty: 1-3 years
Case Size: 83x43.5x31.6mm(L*W*H)
Place of Origin: CHINA
DC Connector: 5.5x2.1/2.5mm
Power over Ethernet
Product Description
Protection: SCP, OVP, OCP, OLP
Product Specification
| Item | 5V/20W Wall Mounted Switch Mode Power Supply AC/DC Adapter |
| Model | PSA0520-W |
| Input | AC 100-240V, 50-60Hz |
| Output | DC 5V, 4000mA |
| Power | Rate power 20W, Max. 24W |
| Circuit Module | IC (Integrated Circuit) solution instead of Triode Scheme, RCC(Ring Choke Converter) or other solutions |
| DC Plug | 5.5x2.1mm (default), 5.5x2.5mm or other OEM size are available |
| Output Cable | 1.2 meter (default), different length of customization are available |
| Protection | SCP (short-circuit protection); OVP (over-voltage protection); OLP (over-load protection); OCP (over-current protection); OTP (over-temperature protection) |
| Energy Efficiency | DoE V |
| Operating Environment | Operating temperature/humidity: -10℃-70℃; 20%-90% RH |
| Storing Environment | Storing temperature/humidity: -20℃-85℃; 10%-95% RH |
| Safety Approval | CE EMC/LVD, FCC, RoHS |
| AC Plug | US, EU, AU, UK and other types of AC plug are all available |
| Application | CCTV Camera, Wireless AP/Router, Power Charger/Bank, LED Light, etc. |
| Enclosure | PC+ABS material, size: 83x43.5x31.6mm |
| Package | White color gift box (implied), 100pcs/carton, carton size: 51.5x24x29.5cm |
| Warranty | 1 year (implied), 2-5 years available based on negotiation |
| Note | All material for components and parts of this power supply adapters are Brand new, Environment Friendly, Quality Assured. |

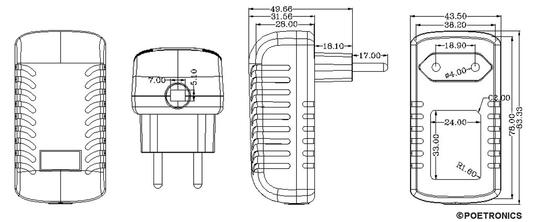

Power Case Diagram:
Input: 100-240V AC, 50-60Hz
AC Plug: EU, US, UK, AUS, etc.
Certificate: CE, RoHS, FCC
Model: PSA0520-W
Output: 5V DC, 4000mA, 20W
