Power over Ethernet &
Power Supply Specialist & Manufacturer
Place of Origin: CHINA
| Item | 5V/5W Wall Mounted Switch Mode Power Supply AC/DC Adapter |
| Model | PSA0505-W |
| Input | AC 100-240V, 50-60Hz |
| Output | DC 5V, 1000mA |
| Power | Rate power: 5W, Max. 8W |
| Circuit Module | IC (Integrated Circuit) solution instead of Triode Scheme, RCC(Ring Choke Converter) or other solutions |
| DC Plug | 5.5x2.1mm (default), 5.5x2.5mm or other OEM size are available |
| Input/Output Cable | Input: 50cm, Output: 120cm (default), other length of customization are available |
| Protection | SCP (short-circuit protection); OVP (over-voltage protection); OLP (over-load protection); OCP (over-current protection); OTP (over-temperature protection) |
| Energy Efficiency | DoE V |
| Operating Environment | Operating temperature/humidity: -10℃-65℃; 20%-90% RH |
| Storing Environment | Storing temperature/humidity: -20℃-80℃; 10%-95% RH |
| Safety Approval | CE EMC/LVD, FCC, RoHS |
| AC Plug | US, EU, AU, UK and other types of AC plug are all available |
| Application | CCTV Camera, Wireless AP/Router, Power Charger/Bank, LED Light, etc. |
| Enclosure | PC+ABS material, size: 75*48*26mm |
| Package | White color gift box (implied), 100pcs/carton, carton size: 51*23.7*30mm |
| Warranty | 1 year (implied), 2-5 years available based on negotiation |
| Note | All material for components and parts of the power supply adapter are brand new, environment friendly, quality assured. |
Supply Ability: 81500 units/month
5Vdc, 1A, 5W
Switch Power Supply
Home >> Product >> Power Supply >> 5V Power Supply>> PSA0505-W >> DC5V, 1A, 5W Wall Mounted Power Supply Adapter
Warranty: 1-3 years
Product Specification

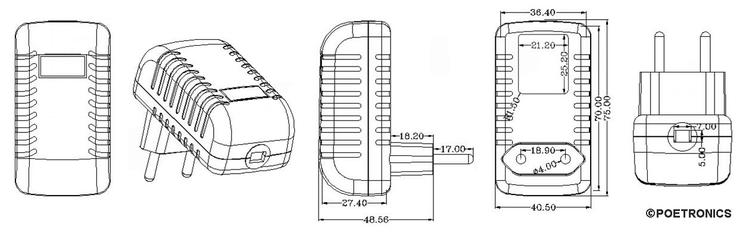

Power Case Diagram:
Case Size: 70x40x30mm (L*W*H)
Protection: SCP, OVP, OCP, OLP
Certificate: CE, RoHS, FCC
Product Description
Product Range
AC Plug: EU, US, UK, AUS, etc.
Power over Ethernet
DC Connector: 5.5x2.1/2.5mm
Model: PSA0505-W
Output: 5V DC, 1000mA, 5W
Overview
PSA0505-W, AC/DC Switching Mode Power Supply (SMPS), is a kind of power supply that with 5Vdc/5W stabilized output characteristic through the control of switch tube opened and shut off time ratio by means of modern power electronic technology, it’s wall direct mounted or wall direct plug-in way of electric power input access through different AC power plugs based on different countries’ standard. Meanwhile, it is also equipped with an output DC connector at size of usual standard (Outer Diameter*Inner Diameter) 5.5x2.1mm and 5.5x2.5mm, or other size combination standard as required.
PSA0505-W is designed and developed over IC control solution instead of RCC solution or Triode based circuit scheme, which highly increase the power efficiency, stability, universality and safety, now it’s up to more than the fifth level power efficiency (DoE V) and are being improved to up to DoE VI. The PCB module of our SMPS are produced through SMT (Surface Mounting Technology) automatic process that will greatly ensure our higher capacity and the SMPS qualification ratio.
With wide input voltage range AC100-240V and adaptable AC plug, Small-size, Light-weight, Plug and play which make the SMPS flexible for installation project in different industries such as LED Lighting, CCTV Surveillance, Network Systems and other areas it may require, So, it’s widely used in every field and all industries.
Input: 100-240V AC, 50-60Hz
