Key Features
Warranty: 1-3 years
Protocol: IEEE802.3af/at
Overview
POE-S4424GBC is 24 ports Gigabit Ethernet 10/100/1000Mbps unmanaged Power over Ethernet PoE switch. It comes with 4 port Gigabit RJ45 and 4 port Gigabit SFP combo uplink, compliance with IEEE802.3af/at protocol standard and drove by 400W(500W optional) built-in power supply source, which all together allows it supply maximum 30W power for every single port at each Power over Ethernet output end, all these power transmits through pins 1,2,4,5 (+) and pins 3,6,7,8(-) over Ethernet cable and require cat5 least or higher quality ones, which will ensure the least power lost in the transmission.
POE-S4424GBC is also equipped with rack mounting kits that allows it easy to be installed on rack or cabinet. and it's applicable primarily to IP CCTV camera, VoIP phone, Wireless Access Point, Portable device, Access Control or other Power over Ethernet compatible Powered Device (PD).
Specification
24 Port Gigabit
Unmanaged PoE Switch
PoE Model: POE-S4424GBC
Product Description
- 24 10/100/1000Mbps PoE + 4 Gigabit RJ45 & SFP Combo Uplink.
- Compliance with IEEE 802.3af/at, 56G bandwidth.
- Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
- Auto MDI/MDIX, Store-and-forward, Lightning protection.
- Plug and play, self-adaption, 19’’/1U rack mountable.
- Max 30W for a single port, total 400W (or 500W optional) built-in rated output power supply.
- Power over Ethernet status can be read and analyzed through LED indicators on front panel.
- Supports wire-speed switching and jumbo frame up to 9KB transmission.
- Applied to IP Camera, Wireless AP, VoIP phone, Intelligent Access Control, etc.
Home>>Product>>PoE Switch(Unmanaged) >>24CH PoE Switch>>POE-S4424GBC>>24GE PoE+4GE Combo Up,400W,af/at,PoE Switch
Power Input: 100-240Vac, 50/60Hz
PoE Size: 440*290*45mm (L*W*H)
Place of Origin: CHINA
| Item | 24 Port Gigabit unmanaged Power over Ethernet Switch |
| Model | POE-S4424GBC |
| Interface | 24 Port Gigabit Power over Ethernet + 4 Port Gigabit RJ45 & 4 Port Gigabit SFP Combo Uplink |
| Power Input | AC100-240V, 50/60Hz |
| Power Output | 48-57Vdc, 400W/500W Built-in Power Supply, Max.30W for every single port |
| Data Exchange | Power over Ethernet: 10/100/1000Mbps, Uplink: 10/100/1000Mbps, Store and Forward |
| Power/Data Assignment | Power: pin 1,2,4,5 “+”, pin 3,6,7,8 ”-”; Data: pin 1,2,3,6 |
| Bandwidth | 56Gbps, 8K |
| Ambient Environment | Operating Temperature: 0~40℃; |
| Storing Temperature: -40~70℃; | |
| Operating Humidity: 10%~90% RH, No condensing; | |
| Storing Humidity: 5%~90% RH, No condensing. | |
| Protocol Standard | IEEE 802.3 Ethernet media access control protocol IEEE 802.3x Flow control |
| Data Speed | Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex |
| Network Media | 10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
| Certificate | CE, RoHS, FCC, C-Tick, RCM |
| Warranty | 1-3 year |

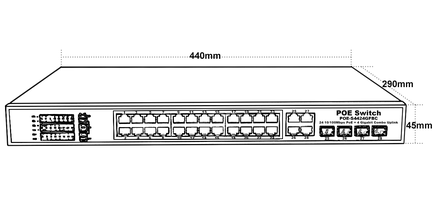

| Size/Weight | PoE Switch Size: 440*290*45mm (L*W*H); |

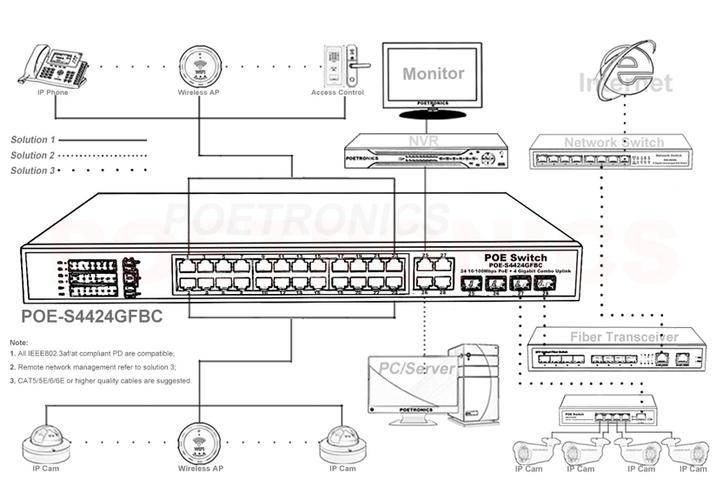

Application Diagram:
Power Output: 48-57Vdc, 400W
Certificate: CE,RoHS,FCC,C-Tick,RCM
PoE Port: 24 Gigabit Ethernet Ports
Uplink Port: 4 Gigabit Combo Uplink
Power Pins: 1,24,5 “+”, 3,6,7,8 ”-”
