​Power over Ethernet &

Power Supply Specialist & Manufacturer

> PoE Switch(Unmanaged)

Specification

> 5V Power Supply

Physical Specs

Power Output: 52Vdc, 350W(Inbuilt)

> 12V Power Supply

​Warranty:  1-3 years

Overview

POE-S4416GFBC is 16 ports Fast Ethernet unmanaged Power over Ethernet PoE switch. It comes with four port Gigabit RJ45 uplink and four port Gigabit SFP combo uplink, compliance with IEEE802.3af/at protocol standard and drove by 350W built-in power supply source, which all together allows it supply maximum 30W power for every single port at PoE switch output end, all these power transmits through pins 1,2 (+) and pins 3,6(-) over Ethernet cable and require cat5 least or higher quality ones, which will ensure the least power lost in the transmission.


The PoE Switch POE-S4416GFBC is also equipped with rack mounting kits that allows it easy to be installed on rack or cabinet. and it's applicable primarily to IP CCTV camera, VoIP phone, Wireless Access Point, Portable device, Access Control or other Power over Ethernet compatible Powered Device (PD).

>> 8 Port PoE Switch

Item
16 Port 10/100Mbps Unmanaged Power over Ethernet PoE Switch
Model
POE-S4416GFBC
Interface
16 10/100Mbps Power over Ethernet output + 4 Gigabit RJ45 & 4 Gigabit SFP Uplink Port
Power Input
AC100-240V, 50/60Hz
Power Output
52Vdc/350W Built-in Power Supply, Max.30W for every single port
Data Exchange
PoE: 10/100Mbps/Gigabit, Uplink: 10/100/1000Mbps, Store and Forward
Power/Data Assignment
Power: pin 1,2 “+”, pin 3,6 ”-”; Data: pin 1,2,3,6
Bandwidth
12.8Gbps, 16K
Protocol Standard

IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE 802.3af/at
IEEE 802.3x

Ambient Temperature

Operating Temperature: 0~40℃; Storing Temperature: -40~70℃

Ambient Humidity

Operating: 10%~90% RH, No condensing; Storing: 5%~90% RH, No condensing

Data Speed

Ethernet 10Mbps half-duplex, 20Mbps full-duplex

Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

Gigabit Ethernet 2000Mbps full-duplex

Network Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
1000Base-T: Pair 4 Category 6(Cat6e) and above UTP/STP(≤150m)
1000Base-SX:62.5μm/50μm MMF(2m~550m

1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

Certificate

CE, RoHS, FCC, C-Tick, RCM

Warranty
1-3 year
Size/Weight

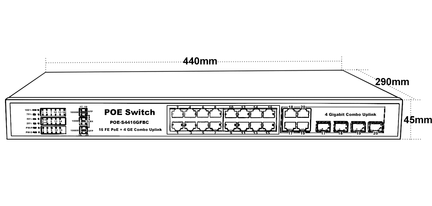

PoE Switch Size: 440*290*45mm (L*W*H);
Packing Box Size: 497*393*97mm (L*W*H);
N.W.: 4.2kg/unit, G.W.: 4.5kg/unit

Note

All material for components and parts of this PoE Switch are brand new, environment friendly, quality assured.


Switch Power Supply

Uplink Port: 4 Gigabit Combo Uplink

> 48V Power Supply

> PoE Splitter

Power over Ethernet

> 24V Power Supply

> PoE Switch(Managed)

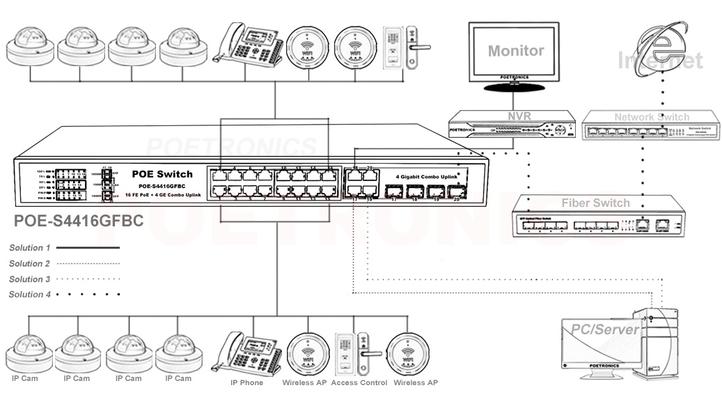

Application Diagram:

>> 48 Port PoE Switch

16 Port 10/100Mbps

​Unmanaged PoE Switch

>> 16 Port PoE Switch

​​​Product  Range

>> 24 Port PoE Switch

Protocol: IEEE802.3af/at

> PoE Extender

  •  16 10/100Mbps PoE + 4 Gigabit RJ45 & SFP Combo Uplink.
  •  Compliance with IEEE 802.3af/at, 12.8G bandwidth.
  • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
  • Auto MDI/MDIX, Store-and-forward, Lightning protection.
  • Plug and play, self-adaption, 19’’/1U rack mountable.​
  • Max 30W for a single port, total 350W built-in rated output power supply.
  • PoE switch status can be read and analyzed through LED indicators on front panel.
  • Supports wire-speed switching and jumbo frame up to 9KB transmission.
  • Applied to IP Camera, Wireless AP, VoIP phone, Intelligent Access Control, etc.

​Power Pins: 1,2 “+”, 3,6 ”-”

Key Features

Product Description

Place of Origin:  CHINA

​​​​​Home >> Product >> PoE Switch(Unmanaged) >> 16CH PoE Switch >> POE-S4416GFBC >> 16FE PoE+4GE Combo,at,350W PoE Switch

PoE Model: POE-S4416GFBC

Power Input: 100-240Vac/52Vdc

> PoE Injector

>> 4 Port PoE Switch

PoE Size:  440*290*45mm (L*W*H)

PoE Port: 16 10/100Mbps Ports

Certificate: CE,RoHS,FCC,C-Tick,RCM
