48 Port 100Mbps PoE Switch with 2 Port Gigabit Combo Uplink

48 10/100Mbps POE + 2 Gigabit RJ45 & SFP Combo Uplink.
Compliance with IEEE 802.3af/at, 17.8G bandwidth.
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
Auto MDI/MDIX, Store-and-forward, Lightning protection.
Plug and play, self-adaption, 19’’/1U rack mountable.
Max 30W for a single port, total 700W built-in rated output power supply.
Power over Ethernet status can be read and analyzed through LED indicators on front panel.
Supports wire-speed switching and jumbo frame up to 9KB transmission.
Applied to IP Camera, Wireless AP, VoIP phone, Intelligent Access Control, etc.

Protocol: IEEE802.3af/at

>> 4 Port PoE Switch

Home >> Product >> PoE Switch(Unmanaged) >> 48CH PoE Switch >> POE-S2248GFBC >>48FE POE+2GE Combo,700W,af/at,PoE Switch

> 12V Power Supply

PoE Model: POE-S2248GFBC

> PoE Switch(Unmanaged)

> 24V Power Supply

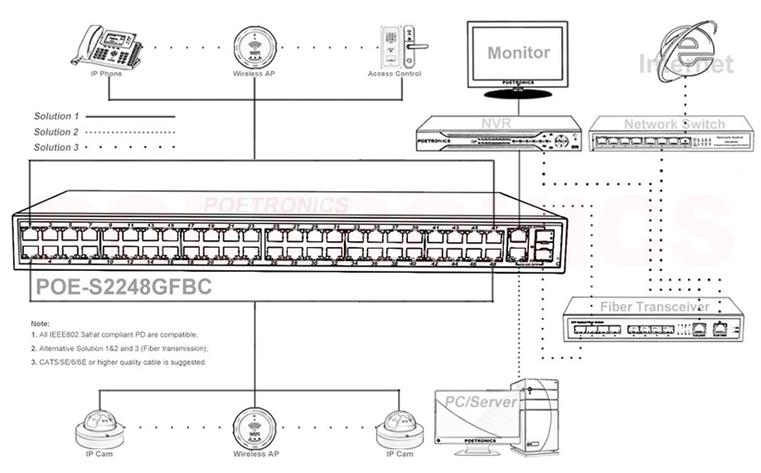

Application Diagram:

> PoE Splitter

Power Pins: 1,2 “+”, 3,6 ”-”

Overview

POE-S2248GFBC is the 48 port 100Mbps PoE Switch that with most output channels we develop and produce, with which 48 units of Powered Device (PD) such as IP Camera, VoIP Phone, Wireless AP/Routers etc. can be working together at the same time powered by only one piece of PoE Switch.

Total 700W power output inside this Power over Ethernet switch, compliance with IEEE802.3af/at that allows it supply max 30W for each port and compatible with most equipment. There are also 2 GE (10/100/1000Mbps) RJ45 and SFP combo ports accessible for uplink. Meanwhile its size 1U (19’’) is available for installing on rack and easy to wire and manage.

Key Features

Item	48 Port 10/100Mbps Unmanaged Power over Ethernet Switch
Model	POE-S2248GFBC
Interface	48 10/100Mbps Power over Ethernet Output + 2 GE RJ45 & 2 GE SFP Combo Uplink
Power Input	AC100-240V, 50/60Hz
Power Output	48-57Vdc, 700W Built-in Power Supply, Max.30W for every single port
Data Exchange	Power over Ethernet: 10/100Mbps, Uplink: 10/100/1000Mbps, Store and Forward
Power/Data Assignment	Power: pin 1,2 “+”, pin 3,6 ”-”; Data: pin 1,2,3,6
Bandwidth	17.6Gbps, 8K
Ambient Environment	Operating Temperature: 0~40℃;
	Storing Temperature: -40~70℃;
	Operating Humidity: 10%~90% RH, No condensing;
	Storing Humidity: 5%~90% RH, No condensing.
Protocol Standard	IEEE 802.3 Ethernet media access control protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z 1000base-x Gigabit Fiber Ethernet IEEE 802.3af/at Power over Ethernet cable pairs or device IEEE 802.3x Flow control
Data Speed	Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex
Network Media	10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) 1000Base-T: Pair 4 Category 6(Cat6e) and above UTP/STP(≤150m) 1000Base-SX:62.5μm/50μm MMF(2m~550m 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
Certificate	CE, RoHS, FCC, C-Tick, RCM
Warranty	1-3 year
Size/Weight	Product Size: 44529045mm (LWH); Packing Box Size: 51038095mm (LWH); N.W.: 5.4kg/unit, G.W.: 5.6kg/unit

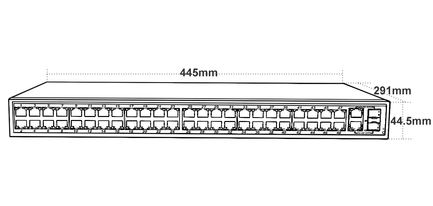

PoE Size: 445*290*45mm (L*W*H)

> PoE Switch(Managed)

Product Description

> 5V Power Supply

>> 16 Port PoE Switch

Power Output: 48-57Vdc, 700W

Uplink Port: 2 Gigabit Combo Uplink

Specification

Warranty: 1-3 years

Certificate: CE,RoHS,FCC,C-Tick,RCM
