Place of Origin:  CHINA

Item
24 Port 10/100Mbps Unmanaged Power over Ethernet Switch
Model
POE-S2224GFB
Interface
24 10/100Mbps PoE + 2 Gigabit RJ45 & 2 Gigabit SFP Uplink
Power Input
AC100-240V, 50/60Hz
Power Output
48~57Vdc, 350W/400W/500W(Optional) Built-in Power Supply, Max.30W for every single port
Data Exchange
Power over Ethernet: 10/100Mbps, Uplink: 10/100/1000Mbps, Store and Forward
Power/Data Assignment
Power: pin 1,2 “+”, pin 3,6 ”-”; Data: pin 1,2,3,6
Bandwidth
12.8Gbps, 8K
Ambient Environment
Operating Temperature: 0~40℃;
Storing Temperature: -40~70℃;
Operating Humidity: 10%~90% RH, No condensing;
Storing Humidity: 5%~90% RH, No condensing.
Protocol Standard

IEEE 802.3 Ethernet media access control protocol
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z 1000BASE-X Gigabit Fiber Ethernet
IEEE 802.3af/at Power over Ethernet cable pairs or device

IEEE 802.3x Flow control

Data Speed

Ethernet 10Mbps half-duplex, 20Mbps full-duplex

Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

Gigabit Ethernet 2000Mbps full-duplex

Network Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
1000Base-T: Pair 4 Category 6(Cat6e) and above UTP/STP(≤150m)
1000Base-SX:62.5μm/50μm MMF(2m~550m

1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

Certificate

CE, RoHS, FCC, C-Tick, RCM

Warranty
1-3 year
Size/Weight

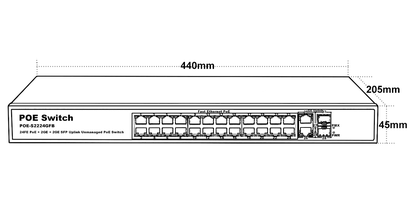

PoE Switch Size: 440*215*45mm (L*W*H);
Packing Box Size: 510*300*95mm (L*W*H)
N.W.: 3.1kg(/3.4kg)/unit, G.W.:3.6kg(/3.9kg)/unit, (400W/500W)


Certificate: CE,RoHS,FCC,C-Tick,RCM

> PoE Extender

​​Deliver Power To Your Dream

Poetronics's Homepage Logo

+86-755-3312-2477  INFO@POETRONICS.CN​

>> 16 Port PoE Switch

PoE Size:  440*290*45mm (L*W*H)

> 24V Power Supply

Protocol: IEEE802.3af/at

Overview

POE-S2224GFB is 24 ports Fast Ethernet unmanaged Power over Ethernet PoE switch. It comes with two port Gigabit RJ45 uplink, compliance with IEEE802.3af/at protocol standard and drove by 350W~500W built-in power supply source, which all together allows it supply maximum 30W power for every single port at Power over Ethernet output end, all these power transmits through pins 1,2 (+) and pins 3,6(-) over Ethernet cable and require cat5 least or higher quality ones, which will ensure the least power lost in the transmission.


This unmanaged Power over Ethernet switch is also equipped with rack mounting kits that allows it easy to be installed on rack or cabinet. Finally, PoE-S2224GFB, as a power source equipment is applicable primarily to IP CCTV camera, Voice over Internet Protocol phone, Wireless Access Point, Portable device, Access Control or other Power over Ethernet compatible Powered Device (PD).

>> 24 Port PoE Switch

Uplink Port: 2 GE RJ45 + 2 GE SFP

> PoE Splitter

​​​Product  Range

24 Port 10/100Mbps

​Unmanaged PoE Switch

PoE Model: POE-S2224GFB

​Power Pins: 1,2 “+”, 3,6 ”-”

PoE Port: 24 10/100Mbps Ports

> PoE Switch(Managed)

> PoE Switch(Unmanaged)

  •  24 10/100Mbps Power over Ethernet + 2 Gigabit RJ45 & 2 Gigabit SFP Uplink.
  •  Compliance with IEEE 802.3af/at, support full port advance standard detection.
  • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
  • Auto MDI/MDIX, Store-and-forward, 12.8G Bandwidth.
  • Plug and play, self-adaption, 19’’ rack mountable, lightning protection.​
  • Max 30W for a single ethernet port, total 350W~500W built-in rated output power supply.
  • Supports wire-speed switching and jumbo frame up to 9KB transmission.
  • PoE status can be read and analyzed through LED indicators on front panel.
  • Applied to IP Camera, Wireless AP, VoIP phone, Intelligent Access Control, etc.

>> 48 Port PoE Switch

Specification

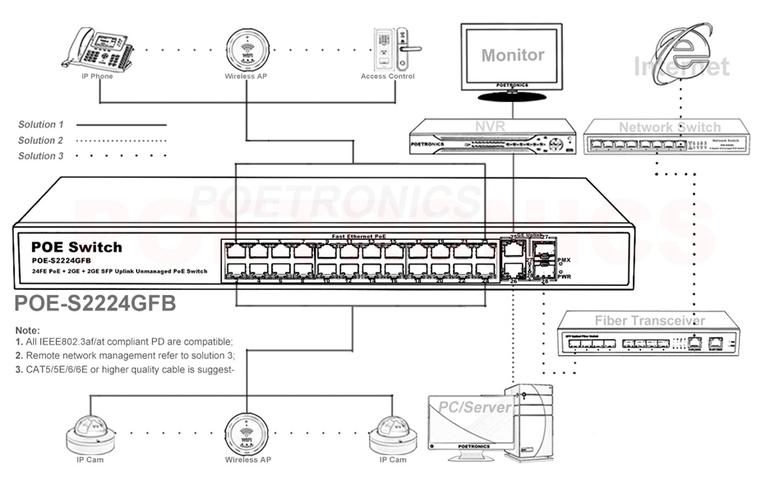

Application Diagram:

​​​​​​Home>>Product>>PoE Switch(Unmanaged)>>24CH PoE Switch>>POE-S2224GFB>>24FE POE+2GE&2GE SFP Up,400W,af/at,PoE Switch

>> 8 Port PoE Switch

Power Input: 100-240Vac/52Vdc

> PoE Injector

Power Output: 48-57Vdc, 350-500W

Switch Power Supply

Product Description

​Warranty:  1-3 years

Physical Specs

> 5V Power Supply

Key Features
