16 Port 100Mbps PoE Switch with 3 Gigabit Uplink

POE-S2116GFB is 16 ports Fast Ethernet unmanaged Power over Ethernet PoE switch. It comes with 2 port Gigabit RJ45 and 1 port Gigabit SFP uplinks, compliance with IEEE802.3af/at protocol standard and drove by 150W/300W built-in power supply source, which all together allows it supply maximum 30W power for every single port at Power over Ethernet output end, all these power transmits through pins 1,2 (+) and pins 3,6(-) over Ethernet cable and require cat5 least or higher quality ones, which will ensure the least power lost in the transmission.

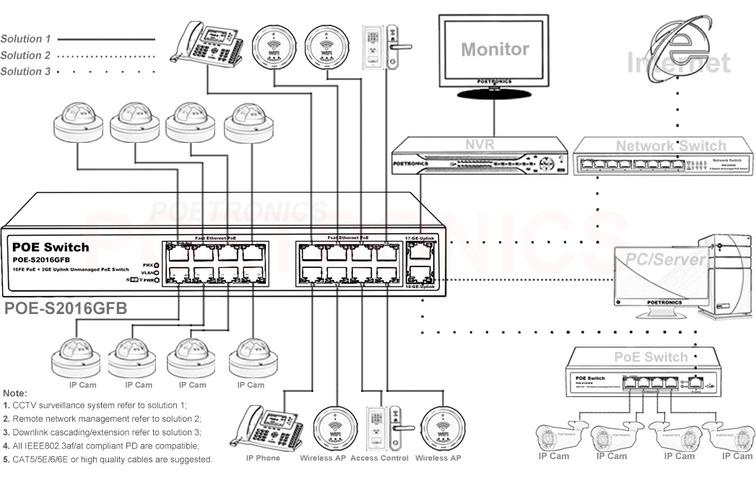

There are two different alternative system modes include free communication and VLAN port isolation switchable as required. It's also equipped with rack mounting kits that allows it easy to be installed on rack or cabinet. Finally, PoE-S2116GFB, as a power source equipment is applicable primarily to IP CCTV camera, VoIP phone, Wireless Access Point, Portable device, Access Control or other compatible Powered Device (PD).

> PoE Extender

16 10/100Mbps PoE port + 2 Gigabit RJ45 & 1 Gigabit SFP uplink port.
Compliance with IEEE 802.3af/at, support full port advance standard detection.
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
Auto MDI/MDIX, Store-and-forward, 20G Bandwidth.
Plug and play, self-adaption, 19’’ rack mountable, lightning protection.
Max 30W for a single port, implied 150W built-in rated output power supply and 300W is optional.
Two different system modes include free communication and VLAN port isolation switchable as required.
Supports wire-speed switching and jumbo frame up to 9KB transmission.
Applied to IP Camera, Wireless AP, VoIP phone, Intelligent Access Control, etc.

Power Output: 48-57Vdc, 150~300W

>> 24 Port PoE Switch

Place of Origin: CHINA

Protocol: IEEE802.3af/at

> 12V Power Supply

>> 8 Port PoE Switch

> 48V Power Supply

Deliver Power To Your Dream

+86-755-3312-2477 INFO@POETRONICS.CN

Power over Ethernet &

Power Supply Specialist & Manufacturer

>> 48 Port PoE Switch

Item		16 Port 10/100Mbps Unmanaged Power over Ethernet Switch
Model		POE-S2116GFB
Interface		16 10/100Mbps PoE + 2 Gigabit RJ45 & 1 Gigabit SFP Uplink
Power Input		AC100-240V, 50/60Hz
Power Output		48~57Vdc, 150W or 300W(Optional) Built-in Power Supply, Max. 30W for every single Ethernet port
Data Exchange		POE: 10/100Mbps/Gigabit, Uplink: 10/100/1000Mbps, Store and Forward
Power/Data Assignment		Power: pin 1,2 “+”, pin 3,6 ”-”; Data: pin 1,2,3,6
Bandwidth		20Gbps, 4K
Ambient Environment		Operating Temperature: 0~40℃;
		Storing Temperature: -40~70℃;
		Operating Humidity: 10%~90% RH, No condensing;
		Storing Humidity: 5%~90% RH, No condensing.
Protocol Standard		IEEE 802.3 Ethernet media access control protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z 1000BASE-X Gigabit Fiber Ethernet IEEE 802.3af/at Power over Ethernet cable pairs or device IEEE 802.3x Flow control
Data Speed		Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex
Network Media		10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
System Setting		Normal Standard Free communication; Supper remote transmission.
Certificate		CE, RoHS, FCC, C-Tick, RCM
Warranty		1-3 year
Size/Weight		PoE Switch Size: 29519045mm (LWH); Packing Box Size: 41027595mm (LWH) N.W.: 2.0/2.3kg/unit(150W/300W), G.W.: 2.3/2.6kg/unit(150W/300W)
