Power over Ethernet &
Power Supply Specialist & Manufacturer
PoE Port: 24*10/100Mbps PoE
Power Output: 48-57Vdc,300~400W
Protocol: IEEE802.3af/at
Product Range
Physical Specs
Power Input: 100-240Vac/52Vdc
PoE Size: 440*290*45mm (L*W*H)
PoE Model: POE-S2024GFB
24 Port 10/100Mbps
Unmanaged PoE Switch
Key Features
| Item | 24 Port 10/100Mbps Unmanaged Power over Ethernet PoE Switch |
| Model | POE-S2024GFB |
| Interface | 24 Port 10/100Mbps PoE + 2 Port Gigabit RJ45 Uplink |
| Power Input | AC100-240V, 50/60Hz |
| Power Output | 52Vdc/300W or 400W(Optional) Built-in Power Supply, Max.30W for every single port |
| Data Exchange | PoE: 10/100Mbps/Gigabit, Uplink: 10/100/1000Mbps, Store and Forward |
| Power/Data Assignment | Power: pin 1,2 “+”, pin 3,6 ”-”; Data: pin 1,2,3,6 |
| Bandwidth | 16Gbps, 4K |
| Ambient Environment | Operating Temperature: 0~40℃; |
| Storing Temperature: -40~70℃; | |
| Operating Humidity: 10%~90% RH, No condensing; | |
| Storing Humidity: 5%~90% RH, No condensing. | |
| Protocol Standard | IEEE 802.3 Ethernet media access control protocol IEEE 802.1q VLAN Bridge Operation |
| Data Speed | Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex |
| Network Media | 10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) |
| System Setting | NOM: Standard Free communication; SUPM: Supper remote transmission (Max.250m). |
| Certificate | CE, RoHS, FCC, C-Tick, RCM |
| Warranty | 1-3 year |

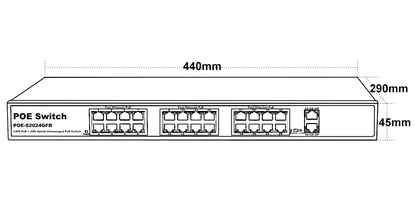

| Size/Weight | PoE Size: 440*290*45mm (L*W*H); |

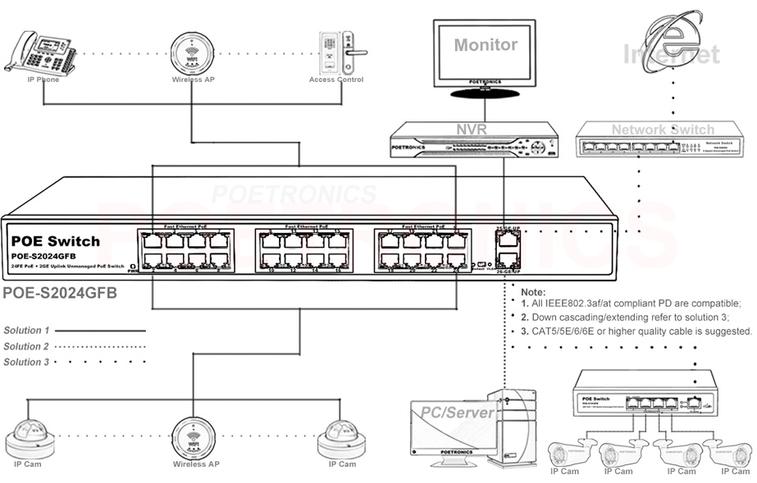

Application Diagram:
Certificate: CE,RoHS,FCC,C-Tick,RCM
Warranty: 1-3 years
Uplink Port: 2 Gigabit RJ45 Uplink
Overview
POE-S2024GFB is 24 ports Fast Ethernet unmanaged Power over Ethernet PoE switch. It comes with two port Gigabit RJ45 uplink, compliance with IEEE802.3af/at protocol standard and drove by 300W/500 built-in power supply source, which all together allows it supply maximum 30W power for every single port at PoE Ethernet output end, all these power transmits through pins 1,2 (+) and pins 3,6(-) over Ethernet cable and require cat5 least or higher quality ones, which will ensure the least power lost in the transmission.
There are two different alternative system modes include default normal free communication among all ports and VLAN port isolation switchable as required. It's also equipped with rack mounting kits that allows it easy to be installed on rack or cabinet. Finally, PoE-S2024GFB, as a power source equipment is applicable primarily to IP CCTV camera, VoIP phone, Wireless Access Point, Portable device, Access Control or other PoE compatible Powered Device (PD).
Power over Ethernet
Home >> Product >> PoE Switch(Unmanaged) >> 24CH PoE Switch >> POE-S2024GFB >> 24FE POE+2GE Up,300-400W,af/at,PoE Switch
Specification
Power Pins: 1,2 “+”, 3,6 ”-”
Place of Origin: CHINA
Product Description
- 24 port 10/100Mbps POE + 2 port Gigabit RJ45 Uplink.
- Compliance with IEEE 802.3af/at, support full port advance standard detection.
- Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
- Auto MDI/MDIX, Store-and-forward, 16G Bandwidth.
- Plug and play, self-adaption, 19’’ rack mountable, lightning protection.
- Max 30W for every single port, total rated output power 300W/400W.
- Two different system modes include free communication and VLAN port isolation switchable as required.
- Supports wire-speed switching and jumbo frame up to 9KB transmission.
- Applied to IP Camera, Wireless AP, VoIP phone, Intelligent Access Control, etc.
