Product Description
Home >> Product >> PoE Switch(Unmanaged) >> 8CH PoE Switch >> POE-S2008GFB >> 8FE PoE+2GE Up,120W/150W,af/at,PoE Switch
Warranty: 1-3 years
Overview
POE-S2008GFB is 8 ports Fast Ethernet unmanaged Power over Ethernet PoE switch. It comes with two port Gigabit RJ45 uplink, compliance with IEEE802.3af/at protocol standard and drove by 150W built-in power supply source, which all together allows it supply maximum 30W power for every single port at PoE Ethernet output end, all these power transmits through pins 1,2 (+) and pins 3,6(-) over Ethernet cable and require cat5 least or higher quality ones, which will ensure the least power lost in the transmission.
There are two different alternative power supply modes for this PoE switch which including AC100-240V and DC 48-57V, it brings high flexibility on the power input. It's also equipped with rack mounting kits that allows it easy to be installed on rack or cabinet. Finally, PoE-S2008GFB, as a power source equipment is applicable primarily to IP CCTV camera, VoIP phone, Wireless Access Point, Portable device, Access Control or other PoE compatible Powered Device (PD).
+86-755-3312-2477 INFO@POETRONICS.CN
Power over Ethernet &
Power Supply Specialist & Manufacturer
Power Output: 52Vdc, 120W/150W
Key Features
| Item | 8 Port 10/100Mbps Unmanaged Power over Ethernet PoE Switch |
| Model | POE-S2008GFB |
| Interface | 8 FE PoE Output + 2 GE RJ45 Uplink Port |
| Power Input | AC100-240V, 50/60Hz and DC48-57V two different power input modes |
| Power Output | 52Vdc/120W(150W) Built-in Power Supply, Max.30W for every single port |
| Data Exchange | 10/100Mbps, Store and Forward |
| Power/Data Assignment | Power: pin 1,2 “+”, pin 3,6 ”-”; Data: pin 1,2,3,6 |
| Bandwidth | 16Gbps, 4K |
| Ambient Environment | Operating Temperature: 0~40℃; |
| Storing Temperature: -40~70℃; | |
| Operating Humidity: 10%~90% RH, No condensing; | |
| Storing Humidity: 5%~90% RH, No condensing | |
| Protocol Standard | IEEE 802.3 Ethernet media access control protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af/at Power over Ethernet cable pairs or device IEEE 802.3x Flow controlIEEE802.1q VLAN Network bridge operation |
| Data Speed | Ethernet 10Mbps half-duplex, 20Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex |
| Network Media | 10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m) |
| System Setting | N: Normal standard switching, free communication among all ports; S: Supper remote distance transmission, max 250 meters. |
| Certificate | CE, RoHS, FCC, C-Tick, RCM |
| Warranty | 1-3 year |
| Size/Weight | PoE Switch Size: 210*140*45mm (L*W*H); Packing Box Size: 260*205*65mm (L*W*H); Net Weight: 1.2kg/unit, Gross Weight: 1.4kg/unit. |

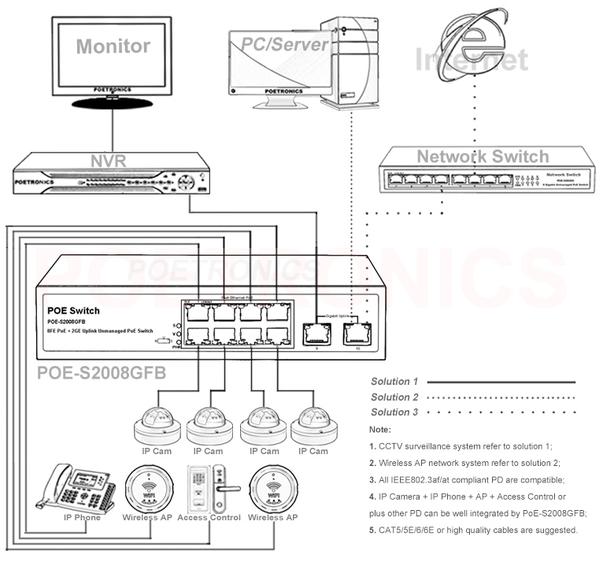

Application Diagram:
Power Pins: 1,2 “+”, 3,6 ”-”
Product Range
Protocol: IEEE802.3af/at
PoE Model: POE-S2008GFB
Power Input: 100-240Vac/52Vdc
PoE Size: 210*140*45mm (L*W*H)
Place of Origin: CHINA
8 Port 10/100Mbps
Unmanaged PoE Switch
- 8 port 10/100Mbps PoE + 2 port 10/100/1000Mbps Uplink.
- Compliance with IEEE 802.3af/at.
- Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
- AC100-240V,50/60Hz or DC48-58V two different power input modes settable
- Auto MDI/MDIX, Store-and-forward, 16G Bandwidth.
- Plug and play, self-adaption, 19’’ rack mountable, lightning protection.
- Max 30W for a single port, total 150W built-in rated output power supply.
- Supports wire-speed switching and jumbo frame up to 9KB transmission.
- Applied to IP Camera, Wireless AP, VoIP phone, Intelligent Access Control, etc.
Specification
Certificate: CE,RoHS,FCC,C-Tick,RCM
