8 Port Gigabit PoE Switch with 2 Port Gigabit Uplink

Deliver Power To Your Dream

+86-755-3312-2477 INFO@POETRONICS.CN

Power over Ethernet &

Power Supply Specialist & Manufacturer

> PoE Extender

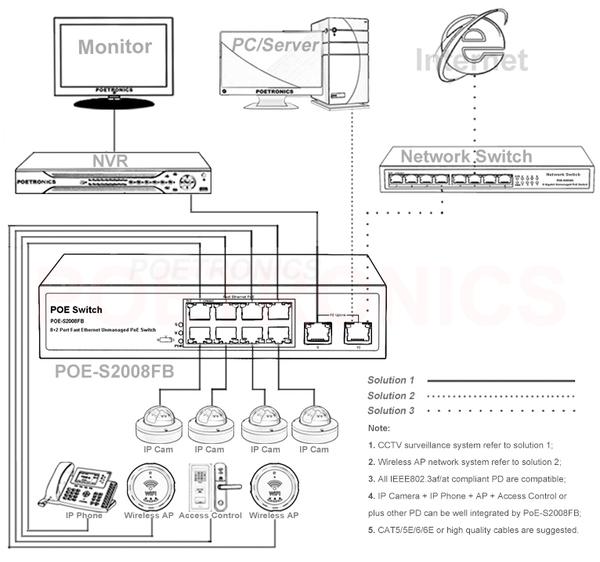

Application Diagram:

> 5V Power Supply

Warranty: 1-3 years

Specification

8 Port 10/100/1000Mbps

Unmanaged PoE Switch

Switch Power Supply

>> 24 Port PoE Switch

Power Pins: 1,24,5 “+”, 3,6,7,8 ”-”

Key Features

> 24V Power Supply

◆ 8 10/100/1000Mbps PoE port + 2 10/100/1000Mbps uplink port.
◆ Compliance with IEEE802.3af/at, support full port advance standard detection.
◆ Flow control: Full-duplex: IEEE 802.3x; Half-duplex: back pressure.
◆ Support Auto MDI/MDIX, Store-and-forward switching, 20G bandwidth.
◆ Max 30W for every single port, total rated output power 120W/150W.
◆ Support wire speed switching and jumbo frame transmission for all ports.
◆ Plug and play, self-adaption, second-level lightning protection.
◆ PoE working status can be read and analyzed through LED indicators on front panel.
◆ Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable.

> 48V Power Supply

Certificate: CE,RoHS,FCC,C-Tick,RCM

Product Description

Overview

POE-S2008GB is 8 ports Gigabit Ethernet 10/100/1000Mbps unmanaged Power over Ethernet PoE switch. It comes with 2 port Gigabit RJ45 uplink, compliance with IEEE802.3af and IEEE802.3at protocol standard and drove by 120W or 150W built-in power supply source which are optional as required, these all together allows it supply maximum 30W power for every single port at PoE Ethernet output end, all these power transmits through pins 1,2 (+) and pins 3,6(-) over Ethernet cable and require cat5 least or higher quality ones, which will ensure the least power lost in the transmission.

There are two different alternative power supply modes for this PoE switch which including AC100-240V and DC 48-57V, it brings high flexibility on the power input. It's also equipped with rack mounting kits that allows it easy to be installed on rack or cabinet. Finally, PoE-S2008GB, as a power source equipment is applicable primarily to IP CCTV camera, VoIP phone, Wireless Access Point, Portable device, Access Control or other PoE compatible Powered Device (PD).

Item	8 Port Gigabit Unmanaged Power over Ethernet PoE Switch
Model	POE-S2008GB
Interface	8 Gigabit PoE + 2 Gigabit RJ45 Uplink Port
Power Input	AC100-240V, 50/60Hz and DC48-57V two different power input modes
Power Output	52Vdc/100W(120W,150W optional) Built-in Power Supply, Max.30W for every single port
Data Exchange	10/100Mbps, Store and Forward
Power/Data Assignment	Power: pin 1,2 “+”, pin 3,6 ”-”; Data: pin 1,2,3,6
Bandwidth	2Gbps, 1K
Ambient Environment	Operating Temperature: 0~40℃;
	Storing Temperature: -40~70℃
	Operating Humidity: 10%~90% RH, No condensing;
	Storing Humidity: 5%~90% RH, No condensing
Protocol Standard	IEEE 802.3 Ethernet media access control protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af/at Power over Ethernet cable pairs or device IEEE 802.3x Flow controlIEEE802.1q VLAN Network bridge operation
Data Speed	Ethernet: half-duplex 10Mbps, full-duplex 20Mbps; Fast Ethernet: half-duplex 100Mbps, full-duplex 200Mbps.
Network Media	10Base-T: 2 Pairs Category 3(Cat3) or higher standard UTP/STP(≤250m) 100Base-TX: 2 Pairs Category 5(Cat5) or higher standard UTP/STP(≤150m)
System Mode Setting	N: Normal free communication among all ports, apply to universal data exchange, 100-150m transmission distance; V: The 1st-8th PoE Ports Virtual-LAN isolating from each other, effectively restrain cyber storm, ARP virus and other network failure; Mostly apply to wireless AP and other equipment. S: Max. 250m Super remote distance transmission mode, specially apply to long distance transmission in IP CCTV, wireless network and other PoE system.
Certificate	CE, RoHS, FCC, C-Tick, RCM
Warranty	1-3 year
Size/Weight	PoE Size: 21014045mm (LWH); Packing Box Size: 26020565mm (LWH); Net Weight: 1.2kg/unit, Gross Weight: 1.4kg/unit.
