​Power Pins: 1,2 “+”, 3,6 ”-”

◆ 4 10/100Mbps PoE port + 2 10/100Mbps uplink port
◆ Compliance with IEEE802.3af/at, support full port advance standard detection
◆ Flow control: Full-duplex: IEEE 802.3x; Half-duplex: back pressure.
◆ Support Auto MDI/MDIX, Store-and-forward switching, 1.6G bandwidth.
◆ Max 30W for every single port, total rated output power 80W.
◆ Support wire speed switching and jumbo frame transmission for all ports
◆ Plug and play, self-adaption, second-level lightning protection
◆ PoE working status can be read and analyzed through LED indicators on front panel
◆ Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable.

Place of Origin:  CHINA

Protocol: IEEE802.3af/at

Power Output: 52Vdc, 80W (Inbuilt)

>> 16 Port PoE Switch

> 48V Power Supply

Specification

​​​Product  Range

​Warranty:  1-3 years

Overview

POE-S2004FB, is a 4 ports Fast Ethernet 10/100Mbps unmanaged Power over Ethernet PoE Switch that comes with 2 ports 100Mbps RJ45 uplink. It's IEEE802.3af/at compliant and equipped with 80W built-in switching mode power supply source which makes it simple and easy to be installed in different projects.

POE-S2004FB also comes with default normal free communication among all PoE ports, ports VLAN and super remote transmission total 3 kinds of different operating modes settable and widely applied to security CCTV surveillance, wireless access point systems, voice over internet protocol phone systems and other area it may require.

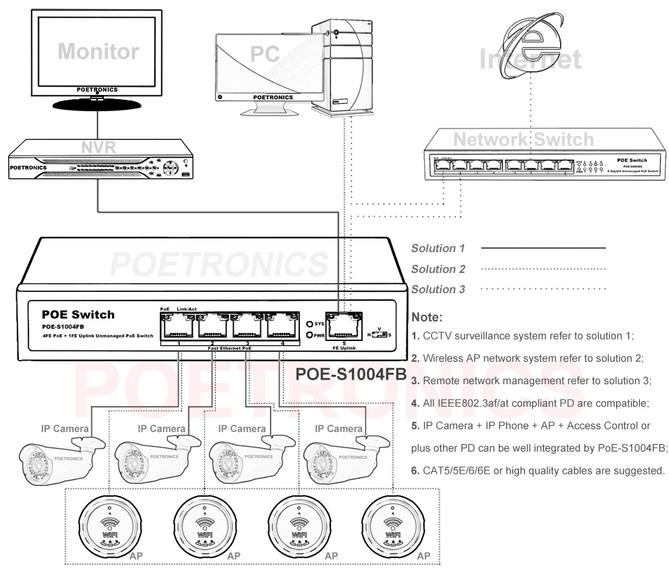

Application Diagram:

PoE Port: 4*10/100Mbps PoE

> PoE Injector

Product Description

Key Features

>> 48 Port PoE Switch

PoE Size:  190*130*33mm (L*W*H)

4 Port 10/100Mbps

​Unmanaged PoE Switch

> 12V Power Supply

>> 4 Port PoE Switch

Power Input: 100-240Vac, 50/60Hz

>> 24 Port PoE Switch

PoE Model: POE-S2004FB

Switch Power Supply

Certificate: CE,RoHS,FCC,C-Tick,RCM

Item
4 Port Fast Ethernet (10/100Mbps) Unmanaged Power over Ethernet Switch
Model
POE-S2004FB
Interface
4 10/100Mbps PoE + 2 10/100Mbps RJ45 Uplink
Power Input
AC100-240V, 50/60Hz, 1.5A
Power Output
DC 48-57V, 80W(Rated), Max. 30W for every single port
Data Exchange
10/100Mbps, Store and Forward
Power/Data Assignment
Power: pin 1,2 “+”, pin 3,6 ”-”; Data: pin 1,2,3,6
Bandwidth
1.6Gbps, 1K
Ambient Environment
Operating Temperature: 0~40℃;
Storing Temperature: -40~70℃
Operating Humidity: 10%~90% RH, No condensing;
Storing Humidity: 5%~90% RH, No condensing
Protocol Standard

IEEE802.3 Ethernet media access control protocol
IEEE802.3i 10BASE-T Ethernet
IEEE802.3u 100BASE-TX Fast Ethernet
IEEE802.3af/at Power over Ethernet cable pairs or device

IEEE802.3x Flow Controll

IEEE802.1 VLAN Network bridge operation

Data Speed

Ethernet: half-duplex 10Mbps, full-duplex 20Mbps;

Fast Ethernet: half-duplex 100Mbps, full-duplex 200Mbps.

Network Media

10Base-T: 2 Pairs Category 3(Cat3) or higher standard UTP/STP(≤250m)

100Base-TX: 2 Pairs Category 5(Cat5) or higher standard  UTP/STP(≤150m)

System Mode Setting

Standard Free communication;
VLAN Port Isolation;

250m Supper remote transmission

Certificate
CE, RoHS, FCC, C-Tick, RCM
Warranty
1-3 year
Size/Weight

PoE Switch Size: 182*132*35mm (L*W*H)
Packing Box Size: 300*208*58mm (L*W*H)

Net Weight: 1kg/unit, Gross Weight.: 1.2kg/unit
