> 48V Power Supply

Certificate: CE,RoHS,FCC,C-Tick,RCM

Power Input: 100-240Vac, 50/60Hz

> 12V Power Supply

8 Port 10/100Mbps

​Unmanaged PoE Switch

> 24V Power Supply

Power over Ethernet

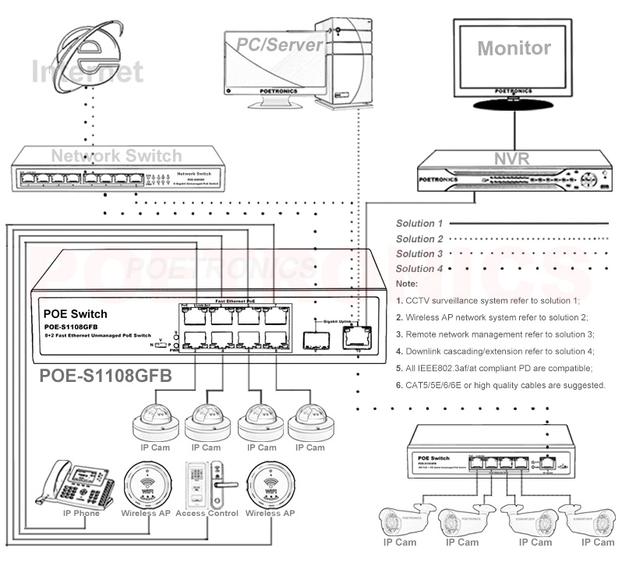

Application Diagram:

​​​​Home >> Product >> PoE Switch(Unmanaged) >> 8CH PoE Switch >> POE-S1008GFB >> 8FE POE+1GE+1GE Up,150W, af/at,PoE Switch

Switch Power Supply

Place of Origin:  CHINA

Power Output: 52Vdc, 150W(inbuilt)

Overview

POE-S1108GFB, 8 port fast Ethernet 10/100Mbps unmanaged Power over Ethernet PoE switch, it comes with one gigabit 10/100/1000Mbps RJ45 uplink and one gigabit SFP uplink, compliance with IEEE802.3af/at protocol and equipped with 150W built-in power supply AC/DC adapter, which enables it compatible with different Powered Devices (PDs) such as IP camera, VoIP phone, wireless access point, portable device, access control, video phone, etc.

Except being powered by 150W built-in power source, getting it equipped with DC48-57V(>=120W) external power supply is also workable for POE-S1108GFB as required, which makes it flexible in power supplying mode. There also has three different system modes (Free communication, VLAN port isolation and IP surveillance transmission) switchable in accordance with different conditions or requirements.

​Power Pins: 1,2 “+”, 3,6 ”-”

Key Features

>> 4 Port PoE Switch

> PoE Extender

>> 16 Port PoE Switch

​​​Product  Range

> PoE Switch(Managed)

> PoE Splitter

Physical Specs

PoE Model: POE-S1108GFB

Specification

> 5V Power Supply

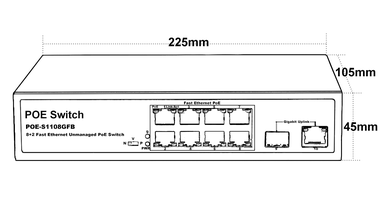

PoE Size:  210*140*45mm (L*W*H)

  •  8 10/100Mbps PoE + 1 Gigabit RJ45 uplink + 1 Gigabit SFP uplink.
  • Auto MDI/MDIX, Store-and-forward, Self-adaption, 5.6G bandwidth.
  • Compliance with IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3af/at.

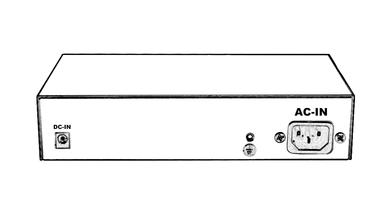

  • AC100-240V and DC48-57V two different power supply modes.
  • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
  • Max 30W each port, total rated built-in power output 150W.
  • Switchable system mode: Free communication, VLAN port isolation and IP Surveillance transmission
  • Supports wire speed switch and jumbo frame up to 9KB transmission for all ports.
  • Plug and play, grounding connection, lightning protection, 19’’ rack mountable.
  • PoE running status can be read and analyzed through corresponding LED indicators.
  • Applied to CCTV IP camera, wireless AP, VoIP phone, etc.

> PoE Injector

Protocol: IEEE802.3af/at

Product Description

PoE Port: 8*10/100Mbps PoE

Uplink Port: 1*GE RJ45 + 1*GE SFP

> PoE Switch(Unmanaged)

​Warranty:  1-3 years

Item
8 Port 10/100Mbps Unmanaged Power over Ethernet PoE Switch
Model
POE-S1108GFB
Interface
8 FE PoE Output + 1 GE RJ45 & 1 GE SFP Uplink Port
Power Input
AC100-240V, 50/60Hz
Power Output
52Vdc/2.88A, 150W Built-in Power Supply, Max.30W for every single port
Data Exchange
POE: 10/100Mbps, Uplink: 10/100/1000Mbps, Store and Forward Switching
Power/Data Assignment
Power: pin 1,2 “+”, pin 3,6 ”-”; Data: pin 1,2,3,6
Bandwidth
5.6Gbps, 4K
Protocol Standard

IEEE 802.3

IEEE 802.3x
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X

IEEE 802.3af/at

IEEE802.1q VLAN

Ambient Environment

Operating Temperature: 0~40℃; Storing Temperature: -40~70

Operating: 10%~90% RH, No condensing; Storing: 5%~90% RH, No condensing

System Setting

N: Normal free communication among all ports, apply to universal data exchange, 100-150m transmission distance.

V: 1-4 PoE Ports VLAN isolating from each other, effectively restrain cyber storm, ARP virus and other network failure; Apply to wireless AP and other equipment.

P: Effectively improve video fluency in data transmission in this special system mode, specially apply to IP CCTV camera surveillance.

Data Speed

Ethernet: 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet: 100Mbps half-duplex, 200Mbps full-duplex

Gigabit Ethernet: 2000Mbps full-duplex

Network Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)
1000Base-SX:62.5μm/50μm MMF(2m~550m)

1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

Certificate

CE, RoHS, FCC, C-Tick, RCM

Warranty
1-3 year
Size/Weight
PoE Switch Size: 210*140*45mm (L*W*H);
Packing Box Size: 260*205*65mm (L*W*H);
Net Weight: 1.2kg/unit, Gross Weight: 1.4kg/unit.
