>> 16 Port PoE Switch

Power Output: 52Vdc, 150W(Inbuilt)

> 48V Power Supply

Item
8 Port Gigabit Unmanaged Power over Ethernet PoE Switch
Model
POE-S1108GB
Interface
8 10/100/1000Mbps PoE  + 1 Gigabit RJ45 & 1 Gigabit SFP Uplink
Power Input
AC 100-240V, 50/60Hz or DC48-57V alternative input power supply mode
Power Output
DC 48-57V, 150W (Rated), Max. 30W for every single port
Data Exchange
10/100/1000Mbps, Store and Forward Switching, 2.5M Cache
Power/Data Assignment
Power: pin 1,2,4,5 “+”, pin 3,6,7,8 ”-”; Data: pin 1,2,3,6
Bandwidth
20Gbps, 8K
Ambient Environment

Operating Temperature: 0~40℃;

Storing Temperature: -40~70;
Operating Humidity: 10%~90% RH, No condensing;
Storing Humidity: 5%~90% RH, No condensing
Protocol Standard
IEEE 802.3 Ethernet media access control protocol
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z 1000BASE-X Gigabit Fiber Ethernet
IEEE 802.3af/at Power over Ethernet cable pairs or device
IEEE 802.3x Flow control
IEEE802.1q VLAN Network bridge operation
Data Speed

Ethernet: 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet: 100Mbps half-duplex, 200Mbps full-duplex

Gigabit Ethernet: 2000Mbps full-duplex

Network Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)
1000Base-SX:62.5μm/50μm MMF(2m~550m)

1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

System Mode

N: Normal free communication among all ports;
V: PoE Ports VLAN isolating from each other;

P: CCTV Network Surveillance transmission mode.

Certificate

CE, RoHS, FCC, C-Tick, RCM

Warranty
1-3 year
Size/Weight
PoE Size: 210*140*45mm (L*W*H);
Packing Box Size: 265*220*65*mm (L*W*H);
Net Weight: 1.4kg/unit, Gross Weight: 1.6kg/unit.


> PoE Injector

  •  8 Gigabit PoE + 1 Gigabit RJ45 uplink + 1 Gigabit SFP uplink.
  •  Compliance with IEEE 802.3af/at, IEEE802.3/u/ab.
  • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
  • Auto MDI/MDIX, Store-and-forward, 20G Bandwidth.
  • Plug and play, self-adaption, lightning protection.​
  • AC100-240V, 50/60Hz or DC 48~57V two different input modes.
  • Max 30W for a single port, total 150W rated output built-in power supply source.
  • Switchable system modes: Normal free communication, VLAN port isolation and IP CCTV Surveillance transmission.
  • Supports wire-speed switching and jumbo frame up to 9KB transmission for all ports.
  • PoE working status can be read and analyzed through LED indicators on front panel.
  • Applied to IP CCTV Camera, Wireless AP, VoIP phone, Intelligent Access Control, etc.

> PoE Extender

​Power Pins: 1,2,4,5 “+”, 3,6,7,8 ”-”

Place of Origin:  CHINA

> PoE Switch(Unmanaged)

>> 24 Port PoE Switch

> 5V Power Supply

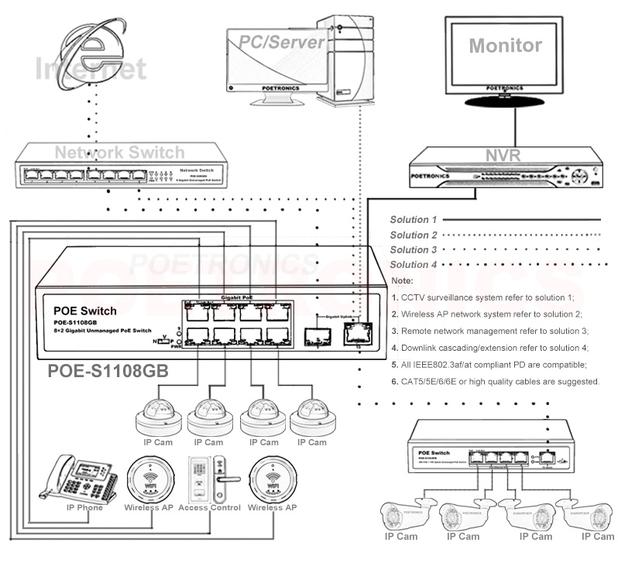

Application Diagram:

> 24V Power Supply

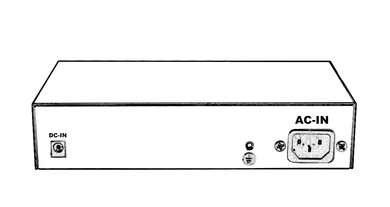

Physical Specs

Power Input: 100-240Vac, 50/60Hz

Specification

> PoE Switch(Managed)

>> 48 Port PoE Switch

> 12V Power Supply

>> 8 Port PoE Switch

​​​​​Home >> Product >> PoE Switch(Unmanaged) >> 8CH PoE Switch >> POE-S1108GB >> 8GE PoE+1GE&1GE Up, 150W,  af/at, PoE Switch

Power over Ethernet

> PoE Splitter

PoE Port: 8*10/100/1000Mbps PoE

Protocol: IEEE802.3af/at

​Warranty:  1-3 years

>> 4 Port PoE Switch

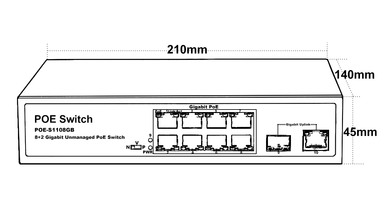

PoE Size:  210*140*45mm (L*W*H)

Switch Power Supply

​Power over Ethernet &

Power Supply Specialist & Manufacturer

Certificate: CE,RoHS,FCC,C-Tick,RCM

Product Description

8 Port Gigabit

​Unmanaged PoE Switch

Key Features

Uplink Port: 1*GE RJ45 + 1*GE SFP

PoE Model: POE-S1108GB

​​​Product  Range

Overview

POE-S1108GB is an 8 port Gigabit Ethernet unmanaged Power over Ethernet PoE switch, It comes with 1 port Gigabit RJ45 and 1 port Gigabit SFP uplink, compliance with IEEE802.3af and IEEE802.3at protocol and equipped with 150W built-in AC/DC power supply source, which enables it compatible with most Powered Devices (PDs) such as security CCTV IP camera, Voice over Internet Protocol phone, wireless access point, portable device, access control, video phone, etc.

POE-S1108GB also has three different operating modes switchable which including Normal free communication, VLAN port isolation and IP CCTV monitoring transmission, either one is switchable to each other as user required. Meanwhile, it also has alternative power supply mode AC100-240V and DC48-57V.

​​Deliver Power To Your Dream
