POE-S1104GB is a 4 port Gigabit unmanaged Power over Ethernet PoE switch that comes with 1 port Gigabit RJ45 and 1 port Gigabit SFP uplink, it is IEEE802.3af/at compliant and equipped with 80W built-in power supply source, which allows each PoE ports to be distributed maximum 30W and average around 16W. So, these enable POE-S1104G compatible with most powered devices (PDs) such as IP CCTV camera, wireless AP, VoIP phone, portable device, video phone, access control or other devices.

>> 8 Port PoE Switch

> 48V Power Supply

Product Description

Certificate: CE,RoHS,FCC,C-Tick,RCM

Power over Ethernet

> PoE Splitter

PoE Model: POE-S1104GB

Power Input: 100-240Vac, 50/60Hz

PoE Size: 190*130*33mm (L*W*H)

>> 16 Port PoE Switch

Warranty: 1-3 years

> 24V Power Supply

>> 48 Port PoE Switch

Item	4 Port Gigabit Unmanaged Power over Ethernet PoE Switch
Model	POE-S1104GB
Interface	4 Gigabit PoE + 1 Gigabit RJ45 Uplink + 1 Gigabit SFP Uplink
Power Input	AC100-240V, 50/60Hz
Power Output	52Vdc/1.53A, 80W External Power Supply, Max.30W for every single port
Data Exchange	10/100/1000Mbps, Store and Forward
Power/Data Assignment	Power: pin 1,2,4,5 “+”, pin 3,6,7,8 ”-”; Data: pin 1,2,3,6
Bandwidth	12Gbps, 1K
Ambient Environment	Operating Temperature: 0~40℃;
	Storing Temperature: -40~70℃;
	Operating Humidity: 10%~90% RH, No condensing;
	Storing Humidity: 5%~90% RH, No condensing
Protocol Standard	IEEE 802.3 Ethernet media access control protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at Power over Ethernet cable pairs or device IEEE 802.3x Flow control
Data Speed	Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex
Network Media	10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) 1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
Certificate	CE, RoHS, FCC, C-Tick, RCM(available)
Warranty	1-3 year
Size/Weight	PoE Switch Size: 190mm130mm33mm (LWH) Packing Box Size: 300mm205mm55mm (LWH) Net Weight: 1.0kg, Gross Weight:1.2kg

◆ 4 Gigabit PoE ports + 1 Gigabit RJ45 & 1 Gigabit SFP uplink ports
◆ Compliance with IEEE802.3af/at, support full port advance standard detection
◆ Flow control: Full-duplex: IEEE 802.3x; Half-duplex: back pressure.
◆ Support Auto MDI/MDIX, Store-and-forward switching, 12G bandwidth.
◆ Max 30W for every single port, total rated output power 80W.
◆ Support wire speed switching and jumbo frame transmission for all ports
◆ Plug and play, self-adaption, second-level lightning protection
◆ PoE working status can be read and analyzed through LED indicators on front panel
◆ Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable.

> 5V Power Supply

> PoE Extender

>> 24 Port PoE Switch

> 12V Power Supply

4 Port Gigabit

Unmanaged PoE Switch

> PoE Switch(Unmanaged)

PoE Port: 4*Gigabit PoE

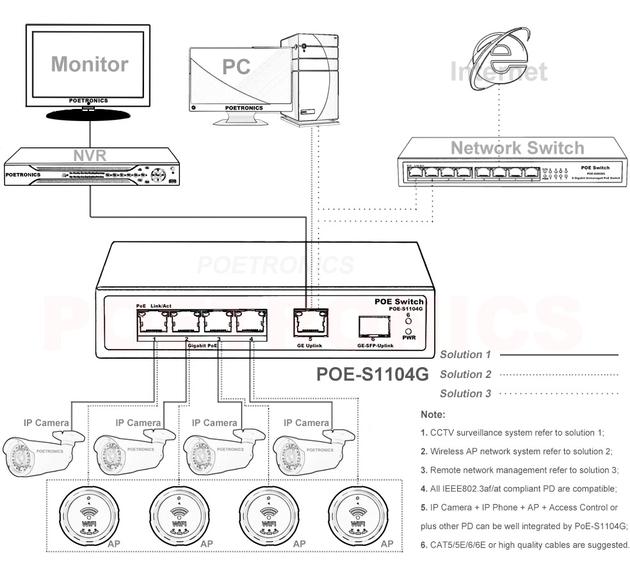

Application Diagram:
