Power over Ethernet &
Power Supply Specialist & Manufacturer
Protocol: IEEE802.3af/at
Certificate: CE,RoHS,FCC,C-Tick,RCM
Product Range
Key Features
Overview
POE-S1004G is a 4 port gigabit Power over Ethernet PoE switch, which comes with 1 port Gigabit uplink, and equipped with 80W built-in power supply, complying with IEEE802.3af/at that makes it compatible with most powered devices (PDs) such as CCTV IP camera, wireless AP, VoIP phone and intelligent access control, etc. So, it’s widely applied in campus, hospital, government, hotel, office building and elsewhere require Ethernet power source.
This 4 port Gigabit PoE Switch extensions available for any IEEE802.3af/at supported PDs as mentioned above, every single PoE ports can be distributed maximum 30W every single port at the PoE output end and average 16W for each PoE output channel, which enables it compatible for most PoE PDs that require power lower than 30W and Gigabit network supported.
Home >> Product >> PoE Switch(Unmanaged) >> 4CH PoE Switch >> POE-S1004GB >> 4GE POE+1GE Up,IEEE802.3at, 80W PoE Switch
4 Port Gigabit
Unmanaged PoE Switch
Power Pins: 1,2,4,5 “+”, 3,6,7,8 ”-”
Uplink Port: 1*Gigabit Uplink
Power Input: 100-240Vac, 50/60Hz
Power Output: 52Vdc, 80W
PoE Port: 4*Gigabit PoE
- 4 port Gigabit PoE + 1 port Gigabit Uplink.
- Compliance with IEEE 802.3af/at, IEEE 802.3u, IEEE 802.3ab.
- Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
- Auto MDI/MDIX, Store-and-forward, 10G Bandwidth.
- Max 30W for a single port, total 80W built-in power supply source
- Plug and play, self-adaption, lightning protection.
- Supports wire-speed switching and jumbo frame up to 9KB transmission.
- Applied to IP Camera, Wireless AP, VoIP phone, Intelligent Access Control, etc.
Product Description
Specification
Physical Specs

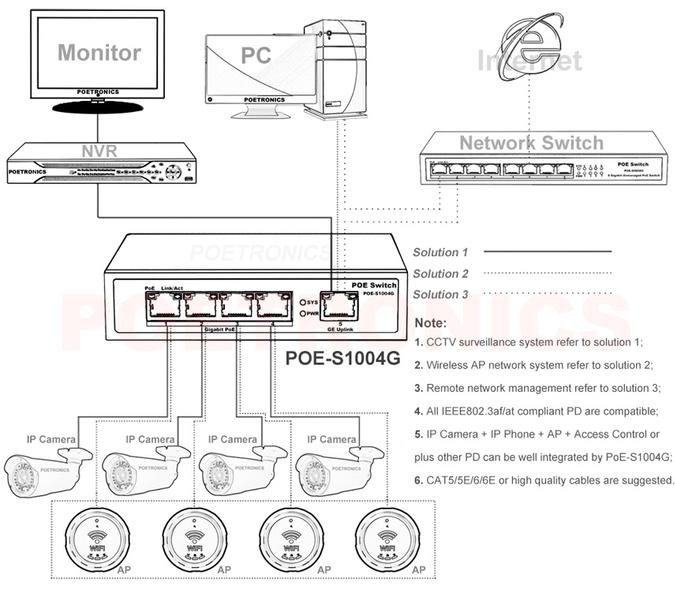

Application Diagram:
Warranty: 1-3 years
PoE Size: 132*88*32mm (L*W*H)
Power over Ethernet
| Item | 4 Port Gigabit Unmanaged Power over Ethernet PoE Switch |
| Model | POE-S1004GB |
| Interface | 4 port Gigabit PoE + 1 port Gigabit RJ45 Uplink |
| Power Input | AC100-240V, 50/60Hz |
| Power Output | 52Vdc/1.54A, 80W External Power Supply, Max.30W for every single port |
| Data Exchange | 10/100/1000Mbps, Store and Forward |
| Power/Data Assignment | Power: pin 1,2,4,5 “+”, pin 3,6,7,8 ”-”; Data: pin 1,2,3,6 |
| Bandwidth | 10Gbps, 1K |
| Protocol Standard | IEEE 802.3, IEEE 802.3x IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3af/at |
| Ambient Temperature | Operating Temperature: 0~40℃; Storing Temperature: -40~70℃ |
| Ambient Humidity | Operating: 10%~90% RH, No condensing; Storing: 5%~90% RH, No condensing |
| Data Speed | Ethernet: half-duplex 10Mbps, full-duplex 20Mbps; |
| Network Media | 10Base-T: 2 Pairs Category 3(Cat3) or higher standard UTP/STP(≤250m) |
| Certificate | CE, RoHS, FCC, C-Tick, RCM |
| Warranty | 1-3 year |

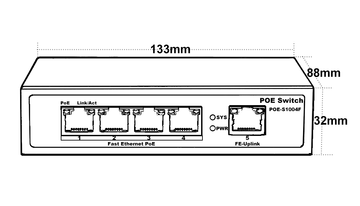

| Size/Weight | PoE Size: 133*88*32mm (L*W*H); Packing Box Size: 181*131*82mm (L*W*H); Net Weight: 1.1kg/unit, Gross Weight: 1.3kg/unit. |
| Note | All material for components and parts of this power supply adapters are brand new, environment friendly, quality assured. |
PoE Model: POE-S1004GB
Place of Origin: CHINA
