Protocol: IEEE802.3af/at
Power Output: 52Vdc,400W(Inbuilt)
Certificate: CE,RoHS,FCC,C-Tick,RCM
Power over Ethernet
Home >> Product >> PoE Switch(Unmanaged) >> 24CH PoE Switch >> POE-S0224GB >> 24GE POE+2GE SFP Up,400W,af/at,PoE Switch
Power Input: 100-240Vac/52Vdc
Place of Origin: CHINA
Uplink Port: 2 Gigabit SFP uplink
Warranty: 1-3 years
Specification

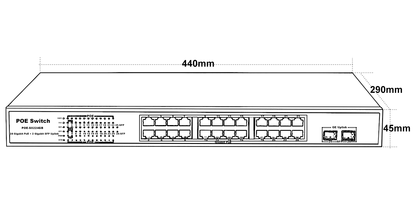

PoE Size: 440*290*45mm (L*W*H)
Key Features
Overview
POE-S0224GB, 24 ports Gigabit unmanaged Power over Ethernet PoE Switch, comply with IEEE802.3af/at and equipped with 400W internal power supply which enables it compatible with most powered device such as IP Camera, Wireless AP, VoIP Phone, PDA, Intelligent Access Control, etc.
This PoE Switch POE-S0224GB comes with 2 ports Gigabit SFP optical uplink to build a super remote transmission system, and it has to work with optical fiber transceiver or fiber switches to link to back-end such as NVR, PC/Server, switches etc. It’s suitable for applying to where require anti-electromagnetic interference and communication security such as residential area surveillance or WLAN network building, or other places like enterprise, hospital, campus, etc.

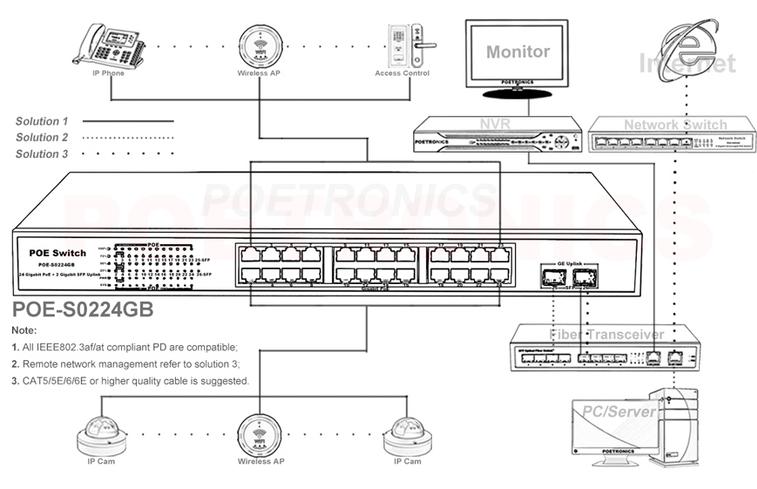

Application Diagram:
PoE Port: 24 Gigabit PoE
Power Pins: 1,2.3.5 “+”, 3,6,7,8 ”-”
Product Description
Product Range
Physical Specs
| Item | 24 Port Gigabit Unmanaged Power over Ethernet PoE Switch |
| Model | POE-S0224GB |
| Interface | 24 Gigabit PoE + 2 Gigabit SFP Uplink |
| Power Input | AC100-240V, 50/60Hz |
| Power Output | 48-57Vdc, 400W Built-in Power Supply, Max.30W for every single port |
| Data Exchange | PoE: Gigabit (10/100/1000Mbps), Uplink: 10/100/1000Mbps, Store and Forward |
| Power/Data Assignment | Power: pin 1,4,5 “+”, pin 3,6,7,8 “-”; Data: pin 1,2,3,6 |
| Bandwidth | 56Gbps, 8K, 4.1M cache |
| Ambient Environment | Operating Temperature: 0~40℃; |
| Storing Temperature: -40~70℃; | |
| Operating Humidity: 10%~90% RH, No condensing; | |
| Storing Humidity: 5%~90% RH, No condensing. | |
| Protocol Standard | IEEE 802.3 Ethernet media access control protocol IEEE 802.3x Flow control IEEE802.1q VLAN Network bridge operation |
| Data Speed | Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex |
| Network Media | 10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
| System Mode | NOM: Standard Free communication; CENK: Flow control to improve video quality and fluency. |
| Certificate | CE, RoHS, FCC, C-Tick, RCM |
| Warranty | 1-3 year |
| Size/Weight | PoE Size: 440*290*45mm (L*W*H); |
Deliver Power To Your Dream
+86-755-3312-2477 INFO@POETRONICS.CN
Power over Ethernet &
Power Supply Specialist & Manufacturer
24 Port Gigabit
Unmanaged PoE Switch
PoE Model: POE-S0224GB
- 24 port Gigabit PoE + 2 port Gigabit SFP uplink.
- Compliance with IEEE 802.3af/at, support full port advance standard detection.
- Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
- Auto MDI/MDIX, Store-and-forward, 56G Bandwidth, 4.1M cache.
- Plug and play, self-adaption, 19’’ rack mountable, lightning protection.
- Max 30W for a single port, total 400W built-in rated output power supply.
- Supports wire-speed switching and jumbo frame up to 9KB transmission.
- POE status can be read and analyzed through LED indicators on front panel.
- Applied to IP Camera, Wireless AP, VoIP phone, Intelligent Access Control, etc.
