Overview

POE-S0216GFB, is 16 ports unmanaged Fast Ethernet Power over Ethernet PoE Switch with 2 ports SFP optical fiber uplink, It is IEEE802.3af/at compliant and equipped with 300W built-in power supply source, which enables every PoE ports distributed average 12.5W and Max 30W, all these power transmits through pins 1,2(+) and pins 3,6(-) over Ethernet cable and require cat5 least or higher quality ones, which will ensure the least power lost in the transmission.

It also comes with rack mounting kits that allows it easy to be installed on rack or cabinet. Finally, PoE-S0216GFB as a power supply source equipment is applicable primarily to IP CCTV camera, Voice over Internet Protocol phone, Wireless Access Point, Portable device, Access Control or other PoE compatible Powered Device.

Item
16 Port 10/100Mbps Unmanaged Power over Ethernet PoE Switch
Model
POE-S0216GFB
Interface
16 10/100Mbps PoE Output + 2 Gigabit SFP Uplink Port
Power Input
AC100-240V, 50/60Hz
Power Output
52Vdc/300W Built-in Power Supply, Max.30W for every single port
Data Exchange
POE: 10/100Mbps/Gigabit, Uplink: 10/100/1000Mbps, Store and Forward
Power/Data Assignment
Power: pin 1,2 “+”, pin 3,6 ”-”; Data: pin 1,2,3,6
Bandwidth
12.8Gbps, 8K
Protocol Standard

IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

​IEEE 802.3af/at
IEEE 802.3x

Ambient Temperature

Operating Temperature: 0~40℃; Storing Temperature: -40~70℃

Ambient Humidity

Operating: 10%~90% RH, No condensing; Storing: 5%~90% RH, No condensing

Data Speed

Ethernet 10Mbps half-duplex, 20Mbps full-duplex

Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

Network Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
1000Base-SX:62.5μm/50μm MMF(2m~550m

1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

Certificate

CE, RoHS, FCC, C-Tick, RCM

Warranty
1-3 year

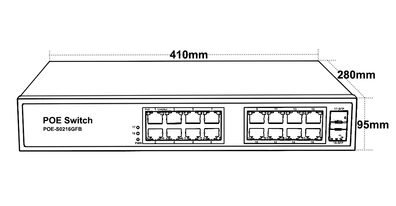

Size/Weight

PoE Switch Size: 285*220*45mm (L*W*H);
Packing Box Size: 410*280*95mm (L*W*H);
N.W.: 2.2kg/unit, G.W.: 2.5kg/unit

Note

All material for components and parts of this power supply adapters are brand new, environment friendly, quality assured.


​​​Product  Range

>> 8 Port PoE Switch

> 24V Power Supply

> 12V Power Supply

> 48V Power Supply

Physical Specs

>> 48 Port PoE Switch

Uplink Port: 2 Gigabit SFP uplink

​​​​​Home >> Product >> PoE Switch(Unmanaged) >> 16CH PoE Switch >> POE-S0216GFB >> 16FE POE+GE SFP Up,300W,af/at,PoE Switch

Specification

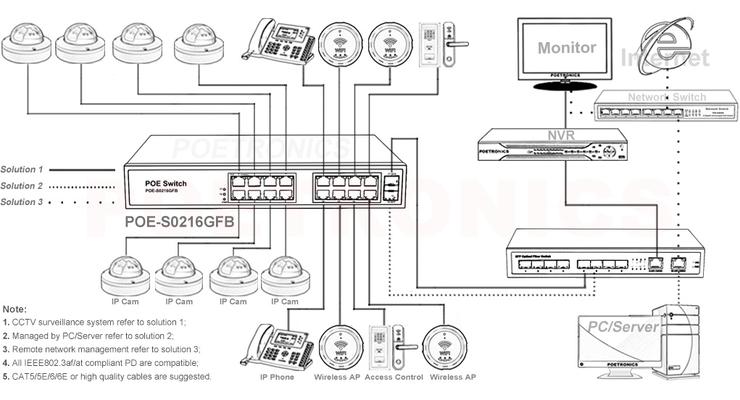

Application Diagram:

​Warranty:  1-3 years

​Power Pins: 1,2 “+”, 3,6 ”-”

>> 4 Port PoE Switch

Power Output: 52Vdc, 300W(Inbuilt)

Key Features

PoE Port: 16*10/100Mbps PoE

>> 24 Port PoE Switch

> PoE Switch(Managed)

Product Description

Power Input: 100-240Vac/52Vdc

> PoE Splitter

  •  16 10/100Mbps POE + 2 Gigabit SFP Uplink.
  •  Compliance with IEEE 802.3af/at, 12.8G bandwidth.
  • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
  • Auto MDI/MDIX, Store-and-forward, Lightning protection.
  • Plug and play, self-adaption, 19’’/1U rack mountable.​
  • Max 30W for a single port, total 300W built-in rated output power supply.
  • PoE status can be read and analyzed through LED indicators on front panel.
  • Supports wire-speed switching and jumbo frame up to 9KB transmission.
  • Applied to IP Camera, Wireless AP, VoIP phone, Intelligent Access Control, etc.
