​Power over Ethernet &

Power Supply Specialist & Manufacturer

  •  16 Gigabit PoE + 2 Gigabit SFP Uplink.
  •  Compliance with IEEE 802.3af/at, 56G bandwidth, 4.1M Cache.
  • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
  • Auto MDI/MDIX, Store-and-forward, Lightning protection.
  • Plug and play, self-adaption, 19’’/1U rack mountable.​
  • Max 30W for a single port, total 350W built-in rated output power supply.
  • PoE status can be read and analyzed through LED indicators on front panel.
  • Supports wire-speed switching and jumbo frame up to 9KB transmission.
  • Applied to IP Camera, Wireless AP, VoIP phone, Intelligent Access Control, etc.

PoE Model: POE-S0216GB

Physical Specs

​​​Product  Range

> PoE Switch(Unmanaged)

> PoE Extender

>> 4 Port PoE Switch

Place of Origin:  CHINA

Power Output: 48~57Vdc, 350W

> 12V Power Supply

> PoE Injector

Power Input: 100-240Vac, 50/60Hz

Item
16 Port Gigabit Unmanaged Power over Ethernet PoE Switch
Model
POE-S0216GB
Interface
16 Gigabit PoE port + 2 Gigabit SFP Uplink port
Power Input
AC100-240V, 50/60Hz
Power Output
48~57Vdc, 350W (rated) Built-in Power Supply, Max.30W for every single port
Data Exchange
PoE: 10/100/1000Mbps/Gigabit, Uplink: 10/100/1000Mbps, Store and Forward
Power/Data Assignment
Power: pin 1,2,4,5 “+”, pin 3,6,7,8 ”-”; Data: pin 1,2,3,6
Bandwidth
56Gbps, 8K
Ambient Environment
Operating Temperature: 0~40℃;
Storing Temperature: -40~70℃;
Operating Humidity: 10%~90% RH, No condensing;
Storing Humidity: 5%~90% RH, No condensing
Protocol Standard

IEEE 802.3 Ethernet media access control protocol
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3z 1000BASE-X Gigabit Ethernet
IEEE 802.3af/at Power over Ethernet cable pairs or device
IEEE 802.3x Flow control

IEEE802.1q VLAN Network bridge operation

Data Speed

Ethernet 10Mbps half-duplex, 20Mbps full-duplex

Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

Gigabit Ethernet 2000Mbps full-duplex

Network Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)
1000Base-SX:62.5μm/50μm MMF(2m~550m)

1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

Certificate

CE, RoHS, FCC, C-Tick, RCM

Warranty
1-3 year
Size/Weight

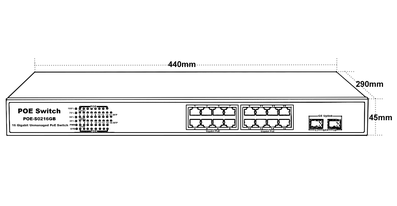

PoE Size: 440*290*45mm (L*W*H);
Packing Box Size: 510*380*95mm (L*W*H);
N.W.: 4.0kg/unit, G.W.: 4.5kg/unit


> PoE Splitter

> 48V Power Supply

Uplink Port: 2 Gigabit SFP uplink

Power over Ethernet

​Warranty:  1-3 years

> 24V Power Supply

>> 48 Port PoE Switch

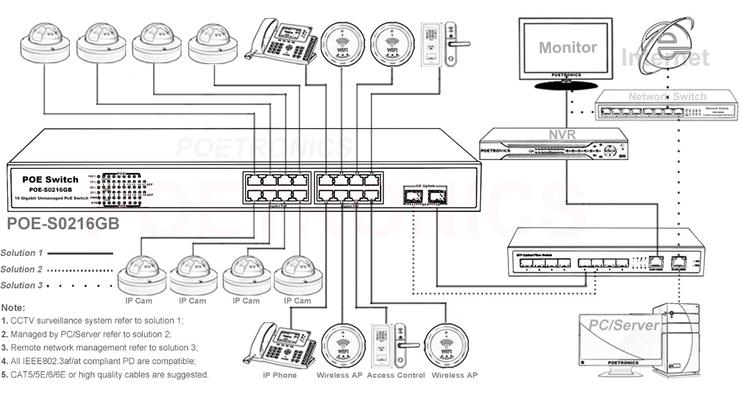

Application Diagram:

16 Port Gigabit

​Unmanaged PoE Switch

Product Description

Protocol: IEEE802.3af/at

>> 24 Port PoE Switch

Specification

Overview

POE-S0216GB is 16 port Gigabit Power over Ethernet PoE Switch that comes with 2 ports Gigabit SFP optical fiber uplink, It is IEEE802.3af/at compliant and equipped with 350W built-in power supply source. Every single port output max 30W power, all these power transmits through pins 1,2,4,5(+) and pins 3,6,7,8(-) over cat 5 least Ethernet cable or higher quality ones, which will ensure the least power lost in the transmission.

It also comes with rack mounting kits that allows it being installed on rack or cabinet, and primarily applied to IP CCTV, wireless access point, portable device, access control or other PoE compatible powered device.

Key Features

Switch Power Supply

>> 16 Port PoE Switch

PoE Size:  440*290*45mm (L*W*H)

PoE Port: 16 Gigabit PoE ports

>> 8 Port PoE Switch

Certificate: CE,RoHS,FCC,C-Tick,RCM

> PoE Switch(Managed)

​​​​​​Home >> Product >> PoE Switch(Unmanaged) >> 16CH PoE Switch >> POE-S0216GB >> 16GE POE+2GE SFP Up,af/at,350W PoE Switch

> 5V Power Supply

​Power Pins: 1,2,4,5 “+”, 3,6,7,8 ”-”
