Power over Ethernet &
Power Supply Specialist & Manufacturer
Product Description
8 Port Gigabit
Unmanaged PoE Switch
Protocol: IEEE802.3af/at
PoE Model: POE-S0008GB
Power Output: 52Vdc, 150W
Power over Ethernet
| Item | 8 Port Gigabit PoE Switch (Unmanaged Power over Ethernet Switch) |
| Model | POE-S0008GB |
| Interface | 8 Port Gigabit PoE |

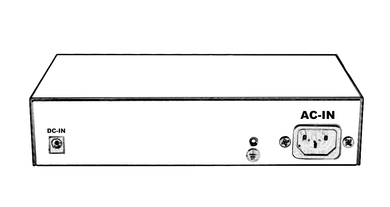

| Power Input | AC 100-240V, 50/60Hz or DC 48~57V two in one input modes |
| Power Output | 52Vdc/150W Built-in Power Supply, Max.30W for every single port |
| Data Exchange | 10/100/1000Mbps, Store and Forward Switching |
| Power/Data Assignment | Power: pin 1,2,4,5 “+”, pin 3,6,7,8 ”-”; Data: pin 1,2,3,6 |
| Bandwidth | 16Gbps, 4K |
| Ambient Environment | Operating Temperature: 0~40℃; |
| Storing Temperature: -40~70 | |
| Operating Humidity: 10%~90% RH, No condensing; | |
| Storing Humidity: 5%~90% RH, No condensing. | |
| Protocol Standard | IEEE 802.3 Ethernet media access control protocol |
| Data Speed | Ethernet: 10Mbps half-duplex, 20Mbps full-duplex |
| Network Media | 10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) |
| System Setting | N: Default free communication among all ports, apply to universal data exchange, 100-150m transmission distance V: 1-8 PoE Ports VLAN isolating from each other, effectively restrain broadcast and multicast storm, ARP virus and other network failure; Apply to wireless AP and other equipment. |
| Certificate | CE, RoHS, FCC, C-Tick, RCM |
| Warranty | 1-3 year |
| Size/Weight | PoE Switch Size: 210*140*45mm (L*W*H); Packing Box Size: 260*210*70mm (L*W*H); Net Weight: 1.3kg/unit, Gross Weight: 1.5kg/unit. |
Warranty: 1-3 years
Place of Origin: CHINA

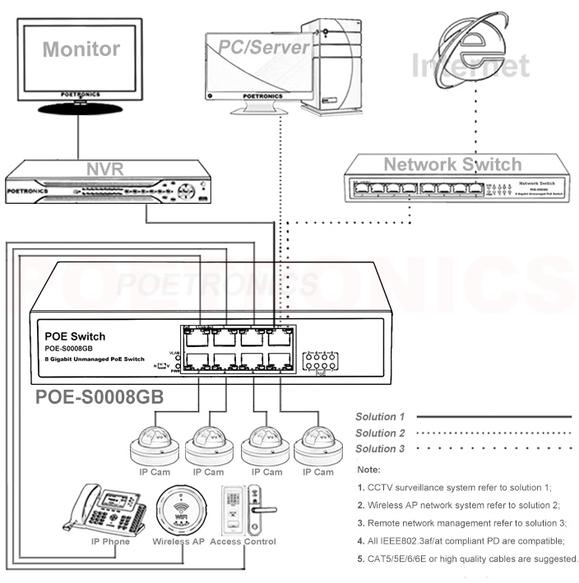

Application Diagram:
Power Input: 100-240Vac, 50/60Hz
PoE Port: 8*10/100/1000Mbps PoE
Certificate: CE,RoHS,FCC,C-Tick,RCM
Specification
- 8 port Gigabit PoE.
- Compliance with IEEE 802.3af/at, 16G Bandwidth.
- C100-240V, 50/60Hz or DC 48~57V two different power supply modes.
- Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
- Auto MDI/MDIX, Store-and-forward, lightning protection.
- Plug and play, self-adaption, 19'' rack mountable.
- Max 30W for a single port, total 150W rated output built-in power supply source.
- Supports wire-speed switching and jumbo frame up to 9KB transmission for all ports.
- PoE working status can be read and analyzed through LED indicators on front panel.
- Applied to IP CCTV camera, wireless access point, VoIP phone, intelligent access control, etc.

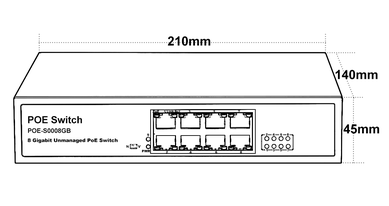

PoE Size: 210*140*45mm (L*W*H)
Product Range
Home >> Product >> PoE Switch(Unmanaged) >> 8 Port PoE Switch >> POE-S0008GB >> 8 Port Gigabit PoE Switch ,IEEE802.3at,150W
Power Pins: 1,2,4,5 “+”, 3,6,7,8 ”-”
Uplink Port: Either one of the 8 ports
Key Features
Overview
POE-S0008GB is 8 port PoE Power over Ethernet Switch that comes with 8 port Gigabit PoE, any one of these 8 port Gigabit PoE can be used as uplink. It is IEEE802.3af/at compliant, equipped with 150W built-in regulated power supply source or driven by external DC48-57V power supply.
This 8 port Gigabit PoE Switch comes with default normal free communication among each 8 Gigabit PoE ports and VLAN ports isolation 2 kinds of optional different operating modes, it’s widely apply to security surveillance, wireless AP, VoIP phone and other compatible powered device.
Physical Specs
