​Power over Ethernet &

Power Supply Specialist & Manufacturer

​Warranty:  1-3 years

Power over Ethernet

​Power Pins: 1,2,4,5 “+”, 3,6,7,8 ”-”

> PoE Injector

Key Features

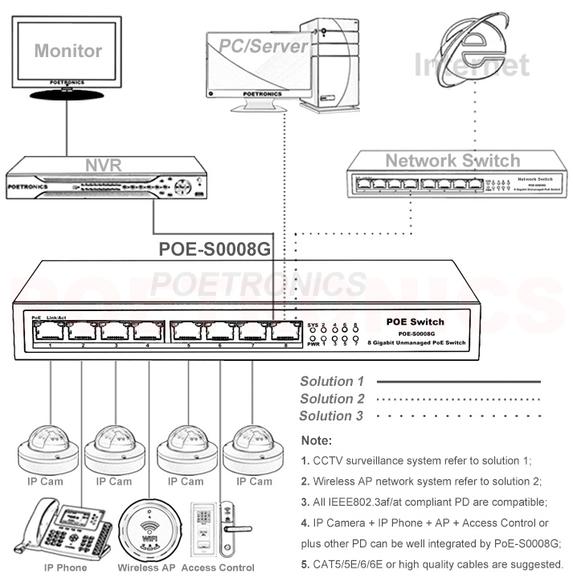

Application Diagram:

Item
Unmanaged 8 Port Gigabit PoE Power over Ethernet Switch
Model
POE-S0008GE
Interface
8 Port Gigabit PoE
Power Input
AC100-240V, 50/60Hz
Power Output
DC48-57V, 120W (Rated) External Power Supply Source, Max. 30W for every single port
Data Exchange
10/100/1000Mbps, Store and Forward Switching
Power/Data Assignment
Power: pin 1,2,4,5 “+”, pin 3,6,7,8 ”-”; Data: pin 1,2,3,6
Bandwidth
52Gbps, 4K
Ambient Environment
Operating Temperature: 0~40℃;
Storing Temperature: -40~70
Operating Humidity: 10%~90% RH, No condensing;
Storing Humidity: 5%~90% RH, No condensing.
Protocol Standard

IEEE 802.3 Ethernet media access control protocol
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-TX Gigabit Ethernet
IEEE 802.3af/at Power over Ethernet cable pairs or device

IEEE 802.3x Flow control

Data Speed

Ethernet: 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet: 100Mbps half-duplex, 200Mbps full-duplex

Gigabit Ethernet: 2000Mbps full-duplex

Network Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)

Certificate

CE, RoHS, FCC, C-Tick, RCM

Warranty
1-3 year

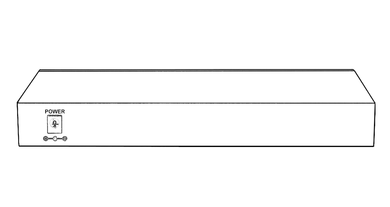

Size/Weight

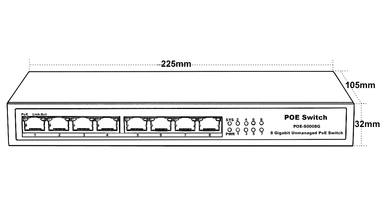

PoE Size: 225*105*32mm (L*W*H);
Packing Box Size: 300*175*100mm (L*W*H);
Net Weight: 1.3kg/unit, Gross Weight: 1.5kg/unit.


Power Input: 100-240Vac, 50/60Hz

Specification

> PoE Switch(Unmanaged)

​​​​Home >> Product >> PoE Switch(Unmanaged) >> 8 Port PoE Switch >> POE-S0008GE >> 8 Port Gigabit PoE Switch,120W, IEEE802.3at

Place of Origin:  CHINA

Physical Specs

Certificate: CE,RoHS,FCC,C-Tick,RCM

◆ 8 Port Gigabit PoE Switch
◆ AC100-240V, 50/60Hz or DC 48~57V two different input modes for optional
◆ Compliance with IEEE802.3af/at, support full ports advance standard detection
◆ Flow control: Full-duplex: IEEE 802.3x; Half-duplex: back pressure
◆ Support Auto MDI/MDIX, Store-and-forward switching, 52G bandwidth
◆ Max 30W for every single port, total rated output power 120W
◆ Support wire speed switching and jumbo frame transmission for all ports
◆ Plug and play, self-adaption, second-level lightning protection
◆ PoE working status can be read and analyzed through LED indicators on front panel
◆ Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable

> 48V Power Supply

PoE Port: 8*10/100/1000Mbps PoE

> 12V Power Supply

> 5V Power Supply

> 24V Power Supply

>> 24 Port PoE Switch

>> 48 Port PoE Switch

>> 4 Port PoE Switch

Overview

POE-S0008GE is an unmanaged 8 Port Gigabit PoE Switch that comes with 8 port Gigabit PoE, any one of these 8 Gigabit ports can be used as uplink. It is IEEE802.3af/at compliant, equipped with 120W external regulated power supply source or driven by external DC48-57V power supply.


This 8 Port Gigabit PoE POE-S0008GE is widely working with 7 units of Powered Device (PD) such as security IP camera, VoIP phone, wireless AP/Routers or other compatible powered device, the 8th port is specially used as uplink and any of these ports power output is max. 30W.

Product Description

>> 8 Port PoE Switch

Power Output: 52Vdc, 120W

Protocol: IEEE802.3af/at

> PoE Extender

8 Port Gigabit​

PoE Switch

PoE Model: POE-S0008GE

Switch Power Supply

Uplink Port: Either one of the 8 ports

>> 16 Port PoE Switch

> PoE Splitter

​​​Product  Range

> PoE Switch(Managed)

PoE Size:  225*105*32mm (L*W*H)
