Protocol: IEEE802.3af/at

PoE Model: POE-S0208GB

Product Description

>> 48 Port PoE Switch

Specification

Switch Power Supply

> PoE Switch(Unmanaged)

> PoE Extender

8 Ports Gigabit

​Unmanaged PoE Switch

​Power Pins: 1,2,4,5 “+”, 3,6,7,8 ”-”

> 48V Power Supply

​​​Product  Range

Power Input: 100-240Vac/52Vdc

  •  8 ports Gigabit PoE + 2 ports Gigabit SFP Uplink.
  •  Compliance with IEEE 802.3af/at, IEEE802.3/u/ab.
  • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
  • AC100-240V,50/60Hz or DC48-57V two different power input modes settable
  • Auto MDI/MDIX, Store-and-forward, 20G Bandwidth.
  • Plug and play, self-adaption, 19’’ rack mountable, lightning protection.​
  • Max 30W for a single port, total 150W built-in rated output power supply.
  • Supports wire-speed switching and jumbo frame up to 9KB transmission.
  • Applied to IP Camera, Wireless AP, VoIP phone, Intelligent Access Control, etc.

Uplink Port: 2 Gigabit SFP Uplink

> 12V Power Supply

> PoE Splitter

​Power over Ethernet &

Power Supply Specialist & Manufacturer

> PoE Switch(Managed)

> 5V Power Supply

Physical Specs

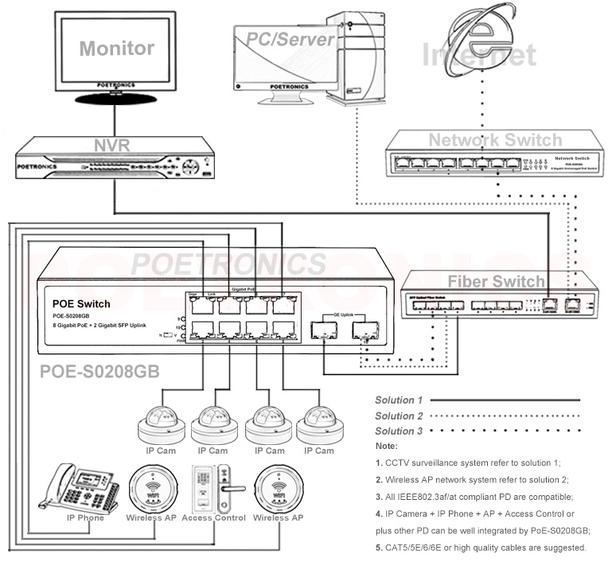

Application Diagram:

> 24V Power Supply

Power Output: 52Vdc, 150W(Inbuilt)

Place of Origin:  CHINA

>> 24 Port PoE Switch

PoE Port: 8 Ports Gigabit PoE

​​​​Home >> Product >> PoE Switch(Unmanaged) >> 8 Ports PoE Switch >> POE-S0208GB >> 8GE POE+2GE SFP, af/at, 150W PoE Switch

Overview

POE-S0208GB is 8 ports Gigabit unmanaged Power over Ethernet PoE switch, it comes with 2 Gigabit SFP fiber uplink, IEEE802.3af and IEEE802.3at compliant and equipped with 150W built-in power supply source, which allows every single port supplies maximum up to 30W power at PSE, all these power transmits through pins 1,2,4,5(+) and pins 3,6,7,8(-) over Ethernet cable and require cat5 least or higher quality ones, which will ensure the least power lost in the transmission.

There are two different alternative power supplying modes for this PoE switch which including AC100-240V and DC 48-57V, it brings high flexibility on the power input. Rack mounting kits are also available for being installed on rack or cabinet. Finally, PoE-S0208GB PoE Switch, as a power source equipment is applicable primarily to IP CCTV camera, Voice over Internet Protocol phone, Wireless AP, Portable device, Access Control or other PoE compatible Powered Device (PD).

Key Features

Power over Ethernet

Certificate: CE,RoHS,FCC,C-Tick,RCM

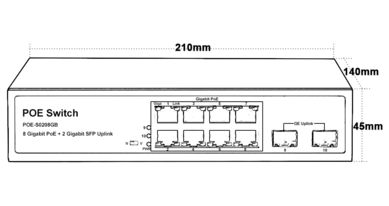

PoE Size:  210*140*45mm (L*W*H)

>> 8 Port PoE Switch

>> 4 Port PoE Switch

​Warranty:  1-3 years

> PoE Injector

+86-755-3312-2477  INFO@POETRONICS.CN​

>> 16 Port PoE Switch

Item
8 Ports Gigabit Unmanaged Power over Ethernet PoE Switch
Model
POE-S0208GB
Interface
8 Ports Gigabit PoE + 2 Ports Gigabit SFP Uplink

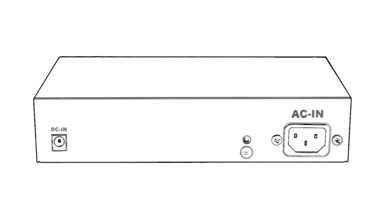

Power Input
AC100-240V, 50/60Hz or DC48-57V two different power input modes
Power Output
52Vdc/150W Built-in Power Supply, Max.30W for every single PoE Switch port
Data Exchange
10/100/1000Mbps, Store and Forward
Power/Data Assignment
Power: pin 1,2,4,5 “+”, pin 3,6,7,8 ”-”; Data: pin 1,2,3,6
Bandwidth
20Gbps, 8K
Ambient Environment
Operating Temperature: 0~40℃;
Storing Temperature: -40~70℃;
Operating Humidity: 10%~90% RH, No condensing;
Storing Humidity: 5%~90% RH, No condensing
Protocol Standard

IEEE 802.3 Ethernet media access control protocol
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z 1000BASE-X Gigabit Fiber Ethernet
IEEE 802.3af/at Power over Ethernet cable pairs or device
IEEE 802.3x Flow controlIEEE802.1q VLAN Network bridge operation

Data Speed

Ethernet: half-duplex 10Mbps, full-duplex 20Mbps;
Fast Ethernet: half-duplex 100Mbps, full-duplex 200Mbps.

Gigabit Ethernet: 2000Mbps full-duplex

Network Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
1000Base-T: Pair 4 Category 6(Cat6e) and above UTP/STP(≤150m)
1000Base-SX:62.5μm/50μm MMF(2m~550m)

1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

System Setting

N: Normal free communication among all ports;
V: PoE Ports VLAN isolating from each other;​

Certificate

CE, RoHS, FCC, C-Tick, RCM

Warranty
1-3 year
Size/Weight
PoE Switch Size: 210*140*45mm (L*W*H);
Packing Box Size: 260*205*65mm (L*W*H);
Net Weight: 1.2kg/unit, Gross Weight: 1.4kg/unit.
